People Carrier Trailers / PC-21


Features and Specifications

  • Standard Tyres: 10.0 x 15 - 70mm 6 stud Tandem axle
  • Body: 21' x 8'
  • Standard Equipment: Hydraulic Brakes / LED Lights / Seat Belts
Basic Price: £18,400.00
  • Features
    • Paint Finish
      Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
    • Delivery
      Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
    • Spare Parts
      Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.
  • Overview

    Features at a Glance

    • Seating for 27 people with seats belts

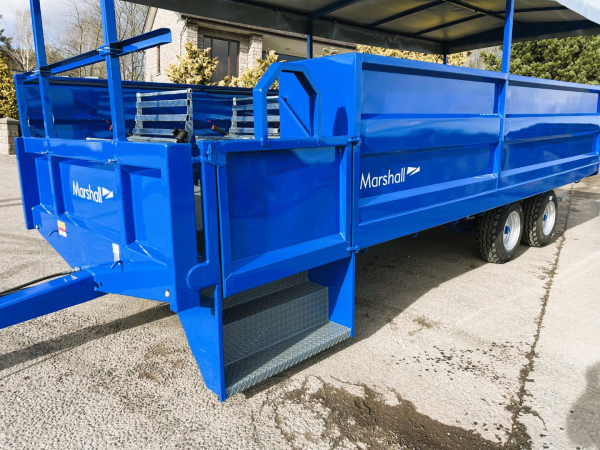

    • Low level access steps complete with safety gate
    • Durabar non slip floor painted with anti-slip paint
    • Roof Cover
    • Hydraulic Brakes
    • LED Lights
    • Genuine Marshall Spares – a full collection of spares are available for all models in the range

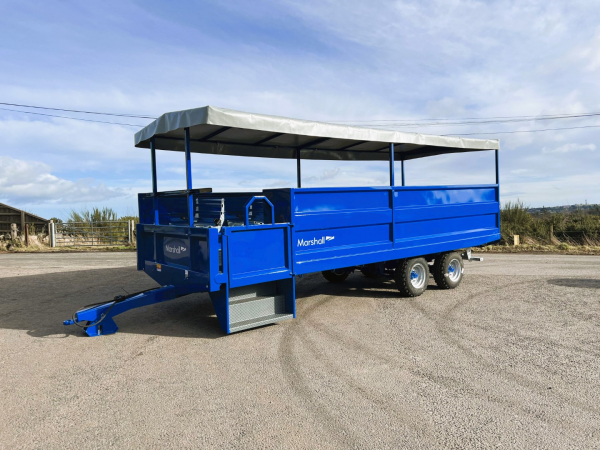

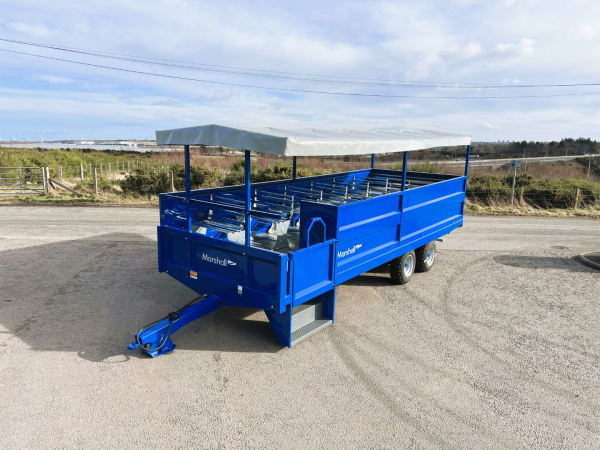

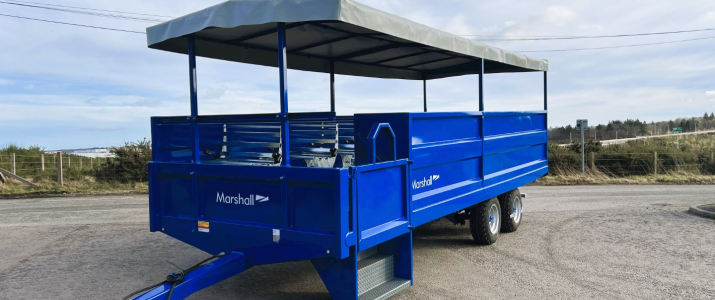

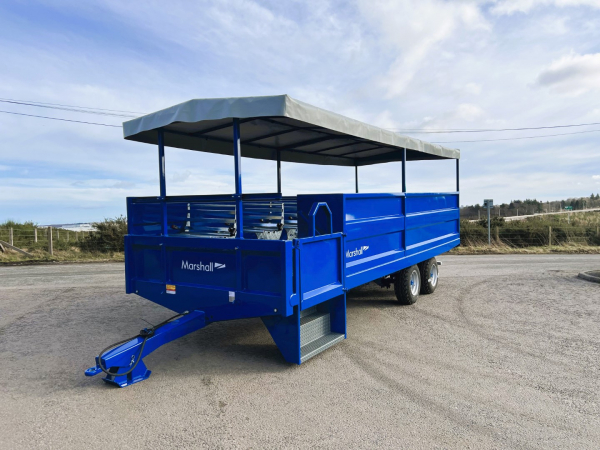

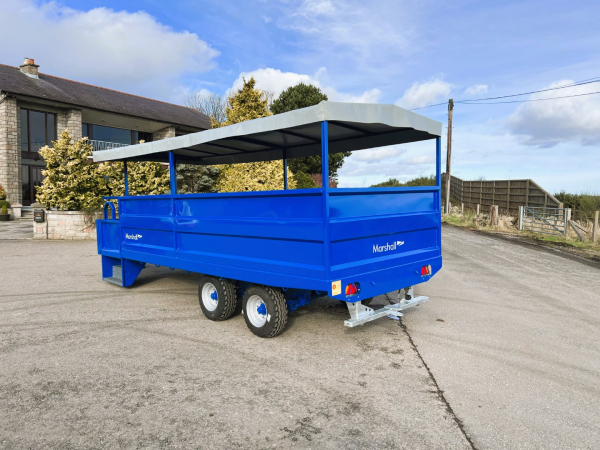

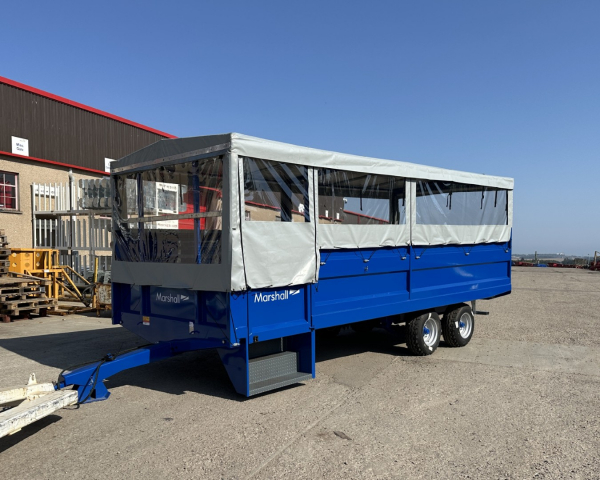

    The Marshall PC-21 people carrier is ideal for moving people at shows, events and commercial sites.

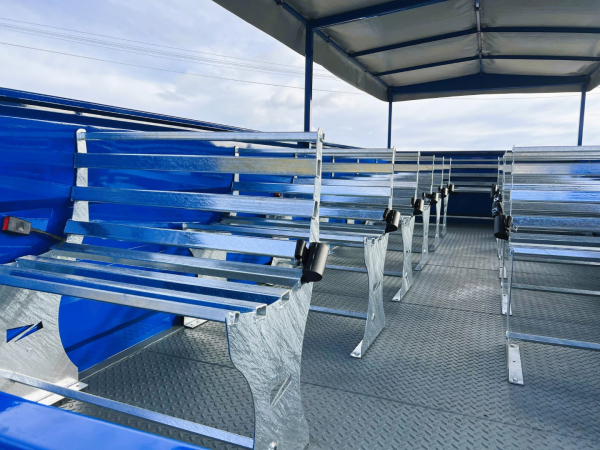

    It comes with seating for 27 people and is equipped with seat belts to ensure occupant safety during operation. The seats are galavnized as standard to prevent corrosion and provide a long service life. Access is via low level access steps on the front, near-side of the trailer that are complete with a safety gate to prevent falling. In addition the chequered plate floor is painted with anti-slip paint to prevent people slipping or falling when embarking or disembarking the trailer. Cover from the elements is provided by a heavy-duty PVC roof. The trailer is also equipped with LED and hydraulic brakes to meet road regulations and spring suspension for a smooth ride.

    The PC-21 is a convenient and practically designed trailer that allows people to be easily and safely transported for a huge range of different events and applications.

  • Specification & Prices
    Body Size21' x 8' / 6.40m x 2.43m
    Standard Tyre Size10.0 x 15 - 14 ply
    Axle70mm 6 stud Tandem
    Brakes300 x 60
    Carrying Capacity6 tons
    Floor Thickness (Steel) Durabar4mm
    Lights & Hyd BrakesStandard
    Unladen Weight2630 kgs
    Loading Height36"
    Chassis Members200mm PFC
    400 - 60 x 15.5£840 / (DF-1)
    340 x 65 x 18 Radial£1460 / (DF-1)
    Spring Drawbar£845
    LED Beacon£145 / (DF-0.25)
    Rear Tool Box£120 / (DF-1)
    LED Tail LightStandard
    Air/Oil Brakes c/w Load Sensing£1,517 (DF-4)
    Oil Load Sensing£750 (DF-2)
  • Owners Info
  • FAQ's
    • What are the current regulations on agricultural trailer brakes?

      Read more

      What are the current regulations on agricultural trailer brakes?

      The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.

      There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.

      Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.

      Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.

      If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.

  • Additional Equipment Extra
    • Spring Suspension

      Spring Suspension

      Part No.


      No-cost Option. Provides excellent performance on the road.

    • Air/Oil Brakes c/w Load Sensing (Non ABS)

      Air/Oil Brakes c/w Load Sensing (Non ABS)

      Part No.

      Dealer Fit - 4hrs


      Ideal if the machine is frequently used on the road, provides improved braking for higher speeds. Automatic load sensing available on springs & manual load sensing available on rockers.

    • Oil Brakes Load Sensing System

      Oil Brakes Load Sensing System

      Part No.

      Dealer Fit - 2hrs


      This optional extra prevents the trailer wheels from locking up by reducing the flow of oil to the brake rams. Automatic load sensing available on springs & manual load sensing available on rockers.

    • Spring Drawbar

      Spring Drawbar

      Part No.


      Reduces tractor bounce when operating machine on the road. This is also height adjustable to match the tractor hitch.

    • Rear Tow Hitch c/w Lights & Brakes

      Rear Tow Hitch c/w Lights & Brakes

      Part No.


      Allows multiple machines to be moved around the farm at once.

    • Hitch Lock

      Hitch Lock

      Part No.

      Dealer Fit - 0.25hrs


      Allows the machine to be secured against theft. Padlock is not included.

    • Number Plate Bracket & Light

      Number Plate Bracket & Light

      Part No.

      Dealer Fit - 1hrs


      Allows your number plate to be easily changed.

    • LED Beacon

      LED Beacon

      Part No.

      Dealer Fit - 0.25hrs


      Ideal if the machine is frequently used on the road.

    • Bespoke Colour Finish - Single Colour

      Bespoke Colour Finish - Single Colour

      Part No.


      Your Marshall product can be painted in 13 bespoke colour finishes, including different blues, greens, yelllows, white, grey and black.
