Features
-
BC Chassis Design – Every model benefits from heavy-duty channels to form a square chassis design that improves rigidity and reduces flexing during loading.
-
BC Bed Design – The entire range have non-slip chequered plate steel floors. The floor bearers are constructed from box-section and interlocked into the 6mm pressed side-rail to improve strength and remove any places where water could sit.
-
21" Fixed Headboard – Standard on all models, except our BC/18, this also dramatically increases the rigidity of the trailer.
-
Harvest Ladders – Standard front and rear ladders on all models, with a galvanized finish to provide effective protection. The rear ladders on all models are adjustable from a straight to an angled position to accommodate different types of bales.
-
Rope Hooks & Ratchet Strap Points – Every model has heavy duty 5/8" rope hooks along each side and at both the front and the back. The side rails of the entire range are also folded from 6mm steel plate with dedicated ratchet strap points to meet the required legislation.
-
BC Lighting Arrangement – Every model ha sealed commercial quality light units that are recessed into the back rail of the trailer to improve protection. LED front marker lights are also a standard feature on all models.
-
Rear Crash Barrier – Standard on all models the crash barrier is formed from box section and can be folded away or removed if preferable.
-
BC Suspension – The normal suspension offered on our bale trailer range is our split-oscillating suspension, which reduces lateral movement and improves stability of high loads. Spring suspension, if preferred, is also available for high-speed road work as a no-cost option.
-
BC Axles & Braking – The standard axles on all our models are more than adequate for most jobs. However commercial 10 stud axles can be specified to provide high-speed performance and enhanced braking.
-
BC Tyres – It is possible to upgrade the tyres on our entire BC range to better handle different jobs. Tyres available include miniature super-singles, low and wide 445-45x19.5 tyres to reduce the bed height and a variety of floatation tyres. All tyre options can be "dealer fitted" except the low profile 445-45 x 19.5 or 355/50 x 22.5 tyres.
-
Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
-
Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
-
Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives of mind when you buy a Marshall that you will be properly supported well into the future.
-

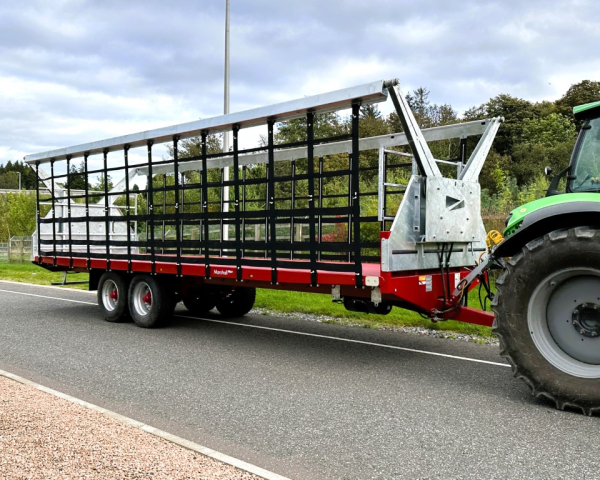

Easy Secure System – The Marshall Easy Secure System fits BC-25-12T models upwards and can be used for a variety of loads from bales to fertiliser bags and boxes. The system incorporates two hydraulically lifted bars that pull a pair of securing nets into place on either side of the trailer, reducing the need for strapping and further tying down of cargo. There are a number of benefits to this design, using nets instead of complicated steel frames reduces the chance of damage, the nets fold together when in the lowered position so the trailer can be moved or un-hitched, and the system works with more than just bales.
-
-
Overview
Features at a Glance
- Durabar non slip floor
- 6mm folded side rails complete with 5/8" rope hooks and dedicated ratchet strap points
- Rolled chanel, square design chassis (eliminates the potential of material fatigue due to flexing)
- Rigid 21” fixed headboard (allows harvest ladders to be held rigidly and increases overall rigidity)
- Standard galvanized harvest ladders, with an adjustable rear ladder.
- Standard spring drawbar provides a smooth ride for the operator.
- The quality split oscillating rocker tandem with its Devlon bushes only adds to the overall level of stability required for this type of work; spring suspension is also offered as a no cost option
- "Dealer Fit Ready" - the trailer is designed to allow 80% of the optional extras to be retrofitted.
- Genuine Marshall Spares – a full collection of spares are available for all models in the range

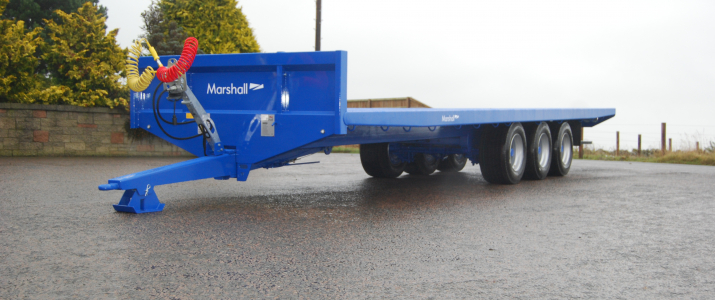

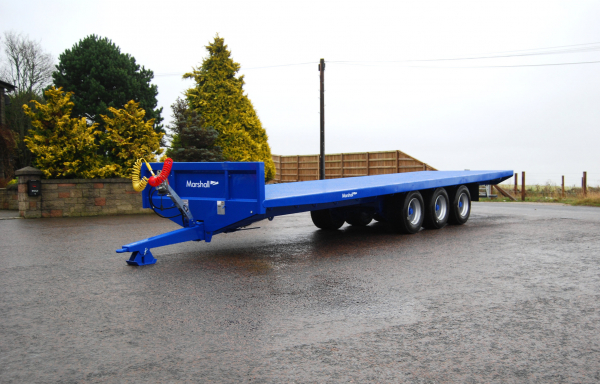

The Marshall BC/36-Tridem is the largest model in our bale trailer range and comes complete with specified with the highest specification of running gear.
It has box section bearers which provides exceptional strength and prevents water from prematurely rusting the trailer. The strength of the trailer is further enhanced by heavy-duty channels forming a square chassis that extends the length of the trailer and also reduces flexing when loading the trailer. Another standard feature that also helps deal with flexing when loading is the 21” headboard, which improves the overall rigidity of the trailer. The BC/36-Tridem uses 10 stud 420 x 180 commercial axles and a 36 ton mono-leaf spring set as standard.
The standard floor on a BC/36-Tridem is a 4mm durabar floor that significantly reduces the potential for loads to move during transport.
The BC/36-Tridem also comes with harvest ladders as standard, ensuring it is capable of carrying all types of load safely from the moment it is purchased. The harvest ladders are galvanised as standard to ensure they do not rust if left outside when not in use. The rear ladder is also adjustable and can be positioned straight or angled depending on the type of bales. On top of this all Marshall bale trailers have hydraulic brakes and lights as standard to comply with all the necessary health and safety legislation. Finally the BC/36-Tridem also includes a spring drawbar as standard, which provides a smooth ride for the tractor operator and prevents the tractor bouncing.
The BC/36-Tridem is the flagship model in our range and provides customers with an efficient and flexible trailer that can meet any customer’s needs.
-
Specification & Prices
BC-21 BC-25-10T BC-25-12T BC-28 BC-32-TAN BC-32-TRI BC-36-TAN BC-36-TRI Price £9,650 £10,500 £13,303 £14,390 £15,900 £19,500 £19,486 £22,182 Body Size 21' x 8' / 6.40m x 2.43m 25' x 8' / 7.62m x 2.43m 25' x 8' 4" / 7.62m x 2.54m 28' x 8' 4" / 8.53m x 2.54m 32' x 8' 4" / 9.75m x 2.54m 32' x 8' 4" / 9.75m x 2.54m 36' x 8' 4" / 10.97m x 2.54m 36' x 8' 4" / 10.97m x 2.54m Standard Tyre Size 12.5 x 15 - 14 ply 12.5 x 15 - 14 ply 385 - 65 x 22.5 385 - 65 x 22.5 385 - 65 x 22.5 385 - 65 x 22.5 385 - 65 x 22.5 385 - 65 x 22.5 Axle 70mm 6 stud Tandem 70mm 6 stud Tandem 80mm 8 stud Tandem 80mm 8 stud Tandem 80mm 8 stud Tandem 90mm 10 stud Tridem 10 stud 120mm High Speed Commercial 10 stud 120mm High Speed Commercial Brakes 300 x 60 300 x 60 350 x 90 350 x 90 350 x 90 406 x 120 420 x 180 420 x 180 Carrying Capacity 10 tons 10 tons 12 tons 14 tons 14 tons 16 tons 16 tons 16 tons Floor Thickness (Steel) Durabar 4mm 4mm 4mm 4mm 4mm 4mm 4mm 4mm Lights & Hyd Brakes Standard Standard Standard Standard Standard Standard Standard Standard Headboard Standard - 21" Standard - 21" Standard - 21" Standard - 21" Standard - 21" Standard - 21" Standard - 21" Standard - 21" Harvest Ladders - Galvanised Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Front & Adjustable Rear Standard Unladen Weight 2030 kgs 2340 kgs 3320 kgs 3840 kgs 4075 kgs 4475 kgs 4935 kgs 5335 kgs Loading Height 38" 39" 47" 47" 47" 47" 47" 47" Chassis Members 200mm PFC 200mm PFC UPN 260mm UPN 260mm UPN 300mm UPN 300mm UPN 300mm UPN 300mm OPTIONAL EQUIPMENT 15-55 x 17 £840 / (DF-1) £840 / (DF-1) N/A N/A N/A N/A N/A N/A 340 x 65 x 18 Radial £1996 / (DF-1) £1996 / (DF-1) N/A N/A N/A N/A N/A N/A 385 - 65 x 22.5 fitted to 8 stud £2,974 N/A Standard Standard Standard Standard Standard Standard 355-50 x 22.5 (Lowers bed height by 150mm) N/A N/A £880 £880 £880 £1,320 £880 £1,320 445 x 45 x 19.5 (Lowers bed height by 150mm) N/A N/A £1,360 £1,360 £1,360 £2,040 £1,360 £2,040 550-45 x 22.5 N/A N/A £1,840 / (DF-1) £1,840 / (DF-1) £1,840 / (DF-1) £2,760 / (DF-1.5) £1,840 / (DF-1) £2,760 / (DF-1.5) 560-45 x 22.5 N/A N/A £2,530 / (DF-1) £2,530 / (DF-1) £2,530 / (DF-1) £3,795 / (DF-1.5) £2,530 / (DF-1) £3,795 / (DF-1.5) 560-60 x 22.5 c/w 10 stud 420 x 180 Axles N/A N/A N/A N/A £4,594 N/A £3,180 / (DF-1) £4,770 / (DF-1.5) Front Mudflaps £95 £95 £95 £95 £95 £95 £95 £95 Spring Drawbar £845 £845 £845 Standard Standard Standard Standard Standard LED Beacon £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) Rear Tool Box £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) £120 / (DF-1) LED Tail Light Standard Standard Standard Standard Standard Standard Standard Standard 10 Stud Commercial Axle 406 x120 N/A N/A £1,364 £1,364 £1,364 Standard N/A N/A 10 Stud Commercial Axle c/w ABS Brakes N/A N/A £4,620 £4,620 £4,620 £3,258 £3108 / (DF-6) £3,258 Air/Oil Brakes c/w Load Sensing £1,517 (DF-4) £1,517 (DF-4) £1,517 (DF-4) £1,517 (DF-4) £1,517 (DF-4) £1,727 (DF-4) £1,517 (DF-4) £1,727 (DF-4) Oil Load Sensing £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2) Rear Box Pusher £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) £850 / (DF-2.5) Hydraulic Side Walkway (per side) N/A £1462 (DF-5) £1462 (DF-5) N/A £1462 (DF-5) £1462 (DF-5) £1462 (DF-5) £1462 (DF-5) Easy Secure System N/A N/A £7,100 (DF-6) £7,200 (DF-6) £7,300 (DF-6) £7,300 (DF-6) £7,900 (DF-6) £7,900 (DF-6) Rear Ramps (Aluminium) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) £1700 / (DF-0.25) - Owners Info
-
FAQ's
-
What are the current regulations on agricultural trailer brakes?
Read moreWhat are the current regulations on agricultural trailer brakes?
The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.
There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.
Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.
Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.
If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.
-
What is the best running gear; rockers or springs?
Read moreWhat is the best running gear; rockers or springs?
This is a question we are constantly asked by customers since the type of running gear will have a huge effect on how the machine performs. There is no definitive answer on which suspension system is better since they both have their own benefits and drawbacks.
Split oscillating suspension or rockers as it is better known is ideal for machines that will carry high, potentially unstable loads as it eliminates lateral movement of the trailer ensuring the load can be safely transported. Crucially this is benefit is not achieved at the expense of ride quality since the tandems are still able move vertically and therefore allow the trailer to travel smoothly over rough ground. The stability of rockers makes them ideal on bale trailers, which are constantly transporting high loads, or on trailers working on steep ground.
Marshalls rocking beams are all extremely heavy-duty, and are produced on site by our skilled engineers. In addition to the robust design, all our tandems utilise devlon bushes, which significantly reduces wear and prolongs the life of the rockers.
The alternative to rockers is spring suspension, which is predominantly used on trailers carrying out a lot of road work. Springs provide an extremely smooth ride and perform better than rockers can on the road, particularly at higher speeds. This type of suspension also allows air brakes with load sensing to be fitted; automatic load sensing does not work on rocker tandem suspension. However the main disadvantage of springs is that they do allow lateral movement of the trailer, making them less stable on steep slopes or with higher loads.
Whatever suspension set-up you prefer Marshalls offers either as a no-cost option, ensuring your next Marshall will be exactly what you want.
-
-
Additional Equipment
Extra
-
Spring Suspension
Part No.
076/01-0000£0.00
No-cost Option. Provides excellent performance on the road.
-

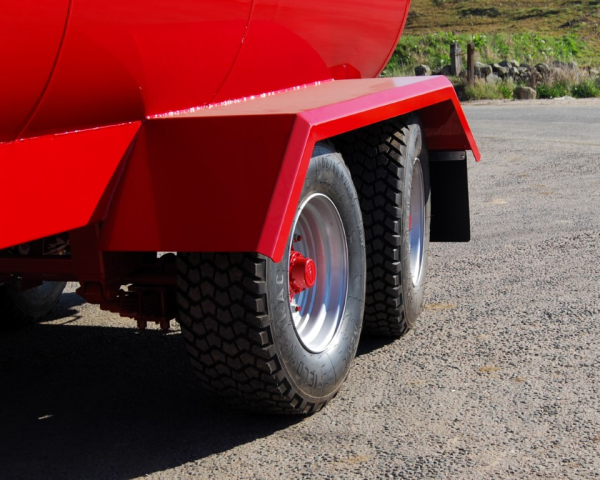

355-50 x R22.5 Wheels
These tyres provide excellent road performance and reduce the bed height of bale trailers by 150mm and 75mm on other models. Please note all prices are in place of standard tyres.
-

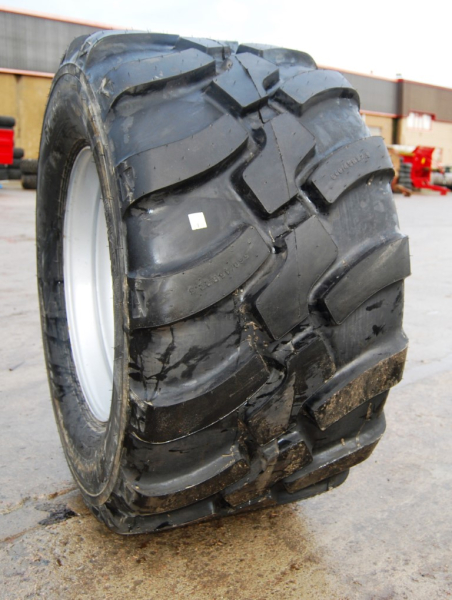

560-45 x 22.5 Radial Flotation Wheels
Part No.
083/01-560-45/10Dealer Fit - 1hrs
£3,795.00
These tyres excell at both on road performance and off-road performance and keep the height of the trailer down. Please note all prices are in place of standard tyres.
-

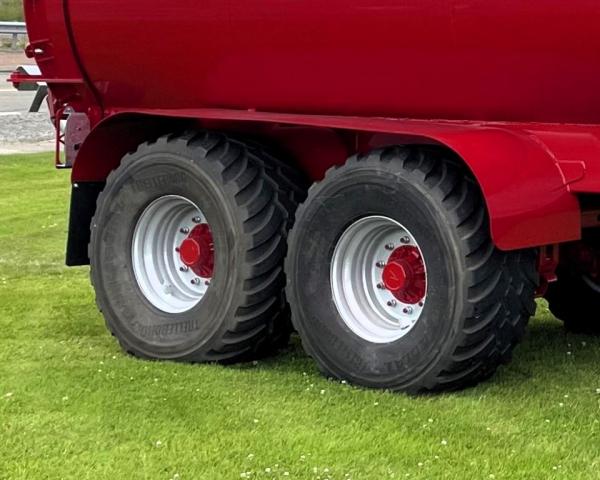

445-45 x 19.5 Wheels
Part No.
083/01-445-45£2,040.00
These tyres are similar to HGV tyres, and give fantastic performance on the road. In addition they lower the bed height of our bale trailers by 150mm or 75mm on other models, improving stability when moving bales or when a livestock container is fitted. Please note all prices are in place of standard tyres.
-
10 Stud Commercial Axles c/w ABS & Air Brakes
Part No.
050/03-4076Dealer Fit - 6hrs
£3,108.00
Ideal if the machine is frequently used on the road, and provides HGV levels of braking. Please note price is for a pair of axles in lieu of 10 stud axles.
-
Air/Oil Brakes c/w Load Sensing (Non ABS)
Ideal if the machine is frequently used on the road, provides improved braking for higher speeds. Automatic load sensing available on springs & manual load sensing available on rockers.
-
Oil Brakes Load Sensing System
This optional extra prevents the trailer wheels from locking up by reducing the flow of oil to the brake rams. Automatic load sensing available on springs & manual load sensing available on rockers.
-
Swivel Hitch
Reduces wear on the tractor pick-up hitch.
-
Hitch Lock
Allows the machine to be secured against theft. Padlock is not included.
-
Front Mudflaps
Reduces mud splatter to the rest of the machine.
-
Rear Tool Box
An ideal place to keep straps and ropes during journeys.
-
Rear Box Pusher
Useful for ensuring a load of boxes are secured for traveling.
-
Hydraulic Side Walk Way (per side)
Allows safe access to boxes, during loading.
-
Easy Secure System
Allows loads to be quickly secured without the need for straps or ropes.
-
Rear Ramp Bar
Part No.
065/10-3300£150.00
Allows ramps to be hooked onto the end of the trailer.
-
Rear Ramps
Part No.
065/10-3345Dealer Fit - 0.25hrs
£1,700.00
Manually attached ramps, ideal of unloading or loading machines.
-
Number Plate Bracket & Light
Allows your number plate to be easily changed.
-
LED Beacon
Ideal if the machine is frequently used on the road.
-
Bespoke Colour Finish - Single Colour
Your Marshall product can be painted in 13 bespoke colour finishes, including different blues, greens, yelllows, white, grey and black.
-
