Barrel Design – The barrels on all models are fully welded and are either 4mm thick on our MS/45, MS/60 and MS/75 or 4.5mm thick on our larger models. The ends on all models are also heavy-duty with 6mm thick ends to provide an excellent service life.
Chassis Design – An integral chassis design has been part of the Marshall spreader for over thirty years. It removes any stress on the barrel of the spreader to prevent premature fatigue or cracking.
Lid Design – Every model in the range benefits from a stainless steel lid ram to eliminate corrosion. Our lids open to 89 degrees, allowing easy loading and reducing the possibility of damage.
Brakes & Lights – Brakes and lights come as standard on all models, except our MS/45. This ensures all our spreaders comply with both highway and health & safety regulations.
Sprockets – All sprockets are machined steel, not cast, and located by a 10 pitch spline to maximize service life. In addition the gearing of the sprockets on all our spreaders has been selected to provide the optimum spread.
Bearings – We only use plumber block bearings, which allows all our bearings to be placed away from corrosive slurry to limit potential damage.
Rotor Shaft – Every model benefits from a round perfectly balanced rotor shaft with chains mounted on four sides, any engineer would agree a round shaft is easier to balance. Heavy-duty starter flails allow the spreader to easily start and quickly achieve the optimum spreading speed.
Chains – The flail chains on every model are case hardened to greatly reduce wear and the heads are welded on, not just held on with a pin or bolt. Large 3" x 2.5" heads and a substantial number of flail chains ensure a fast, efficient spread rate.
Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives of mind when you buy a Marshall that you will be properly supported well into the future.
Features at a Glance
- Precision steel sprockets (not cast) located to the shafts by a 10 pitch spline
- The bottom input shaft is mounted by two bearings and the drive sprocket is positioned between them.
- All bearings are mounted away from the drum limiting potential damage from corrosive slurry
- A round perfectly balanced main rotor shaft with chains mounted on four sides
- All our flail chains are over-engineered for the task at hand. They are case hardened to greatly reduce wear and the heads are fully welded on, not just held on with a pin or bolt. Large 3” x 3 1/2” heads (ensures a fast efficient spread rate)
- Brakes and lights come as standard on all models (except MS45). This ensures the spreader complies with both highway and health & safety laws.
- The spreader lid is opened by a hydraulic ram which is made from stainless steel to eliminate corrosion. The lid itself is extremely large allowing easy loading with today’s larger loading forks and grabs. It is also worth noting our lids open vertically so the muck does not have to be edged in.
- Integral design chassis has been part of the Marshall spreader for over 30 years (ensures no fatigue that can produce premature cracking of the body)
- Genuine Marshall Spares – a full collection of spares are available for all models in the range

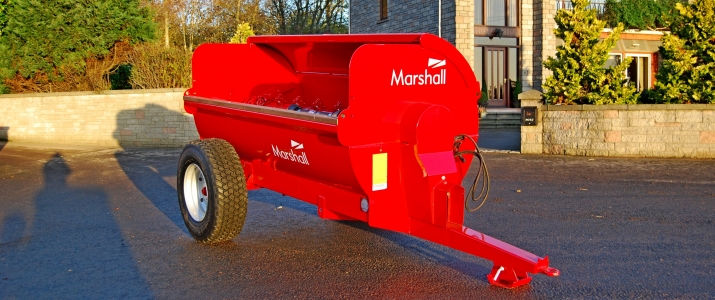

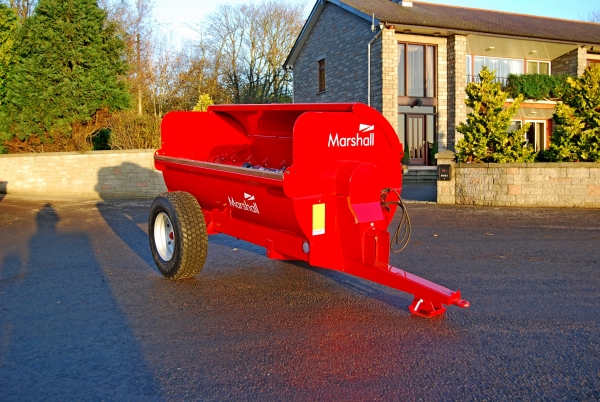

The MS90 has a more heavy-duty build than the smaller models in our muckspreader range. This is to ensure that it can handle effectively handle the work that a spreader of its size is expected to carry out.
It has a 4.5mm drum and 6mm ends, which is hugely over engineered for the size of the spreader and therefore drastically improves its lifespan. The chains used in this model are case hardened flail chains with fully-welded heads, not simply held on with a bolt or pin; this significantly reduces wearing of the chains and chain heads. Furthermore this model moves up to a 14mm chain head to ensure that the high build quality is maintained throughout our muckspreader range. The chains are also mounted on four sides of a perfectly balanced main rotor, to help create a more even spread pattern.
The sprockets used in the spreader are precision steel sprockets, not cast, located to the shaft by a 10 pitch spline. These sprockets are much stronger than cast sprockets and reduce the chance of component failure, prolonging the life of the spreader. The MS90 model uses duplex sprockets and chains to guarantee the spreader can cope with the demands placed on it. In addition the bottom input shaft is mounted by two bearings and the drive sprocket is positioned between them for maximum strength, further reducing the chances of component failure. All bearings on Marshall spreaders are also mounted away from the drum limiting the potential damage from corrosive slurry.
The spreader lid is opened by a hydraulic ram which is made from stainless steel to eliminate corrosion. The lid itself is extremely large allowing easy loading with today’s larger loading forks and grabs. It is also worth noting our lids open vertically so the muck does not have to be edged in.
The overall strength of the spreader is further enhanced by the Marshall integral chassis design that has been used for over 30 years. This removes any stress on the drum of the spreader that could potentially cause premature cracking. On top of this the MS90 also has hydraulic brakes and lights integrated into the back rail as standard, ensuring it complies with all health and safety regulations.
The MS90 has an excellent carry capacity and solid build that makes it point for point the best muckspreader on the market today.
Specification & Prices
MS60 MS75 MS90 MS105 Price £8,637 £10,034 £11,444 £14,245 Standard Tyre Size 12.5 x 15 - 14 ply 385 - 65 x 22.5 385 - 65 x 22.5 550 - 60 x 22.5 Axle 70mm 6 stud 70mm 6 stud 70mm 6 stud 80mm 8 stud Brakes 300 x 60 300 x 60 300 x 60 350 x 90 Volume Capacity 6 cu. yds / 4.6 cu.mtrs / 1000gal 7.5 cu. yds / 5.7 cu.mtrs / 1250gal 9 cu. yds / 6.9 cu.mtrs / 1500gal 10.5 cu. yds / 8 cu.mtrs / 1750gal Hydraulic Brakes Standard Standard Standard Standard Hydraulic Lid Standard Standard Standard Standard Drum Thickness 4mm 4mm 4.5mm 4.5mm Ends 6mm 6mm 6mm 6mm Case Hardened Chain Flails 1/2" / 13mm 1/2" / 13mm 9/16" / 14mm 9/16" / 14mm Flail Chain - Quantity 28 28 36 40 HP Requirements 55 65 85 95 End Height 73" 81" 82" 82" Loading Height 51" 58" 59" 62" Body Dimension 10' x 54" 10' x 57" 12' x 60" 14' x 60" Lights Standard Standard Standard Standard Basic Spreader Weight 1330 kg 1440 kg 1930 kg 2220 kg OPTIONAL EQUIPMENT Slurry Bib 8inch Deep - Galvanized £230 / (DF-0.5) £230 / (DF-0.5) £230 / (DF-0.5) £230 / (DF-0.5) 11.5 x 15 N/A N/A N/A N/A 12.5 x 15 N/A N/A N/A N/A 16/70 x 20 Track Tread £675 / (DF-0.5) £625 / (DF-0.5) £625 / (DF-0.5) N/A 550 - 60 x 22.5 fitted to 8 stud N/A £1150 / (DF-2) £1150 / (DF-2) Standard Jack Screw in lieu of Skid £234 £234 £234 N/A LED Tail Lights £175 / (DF-0.5) £175 / (DF-0.5) £175 / (DF-0.5) £175 / (DF-0.5)
- Owners Info
How do you prolong the life of a rotor-spreader?Read more
How do you prolong the life of a rotor-spreader?
The Marshall rotor-spreader is designed to be simple and effective; ensuring that customers will not be let down. However proper maintenance and care is also essential and can drastically improve the life of a spreader. The most straight-forward and most obvious way to prolong the life of a spreader is to follow the maintenance instructions in the machine handbook; the information below highlights some of the more common problems and solutions.
The easiest way to ensure your spreader lasts is to clean it out after use and never leave it full of muck and slurry, both are extremely corrosive to the paint and bodywork. It sounds like a simple piece of advice, but many people never wash their spreader.
Another important maintenance job is making sure that the four bearings on a spreader are properly greased; one of either end of the rotor shaft and two on the input shaft. This simple task combined with the intelligent placement of bearings on a Marshall spreader will prolong the life of the bearings and prevent premature failure.
Finally, the most important maintenance advice that any rotor-spreader owner should follow is to watch the flail chains for stretching. As any spreader is used the stresses on the flail chains cause them to stretch and scrap against the spreader drum; this can quickly cause holes in the drum if not rectified. The solution is to remove the pin holding each chain and move it one link further up to shorten the chain.
What are the current regulations on agricultural trailer brakes?Read more
What are the current regulations on agricultural trailer brakes?
The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.
There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.
Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.
Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.
If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.
REMOULD 400-60 x 22.5 Wheels
Dealer Fit - 0.5hrs
These tyres offer general all-round performance, effectively reducing ground compaction and performing reasonably well during road use. Please note all prices are in place of standard tyres.
550-60 x 22.5 Flotation Wheels
Dealer Fit - 2hrs
These tyres offer excellent floatation and significantly reduce ground compaction, ideal off-road and on wet ground. Please note all prices are in place of standard tyres.
16/70x20 Track Tread Wheels
Dealer Fit - 0.5hrs
These tyres reduce ground compactions and improve handling in wet conditions. Please note all prices are in place of standard tyres.
Allows the machine to be secured against theft. Padlock is not included.
Jack Screw in Lieu Skid
An essential for using machine with tractors without a pickup hitch.
Slurry Bib 8" Deep
Prevents slurry from slopping over the side of the spreader during transport.
Dealer Fit - 0.5hrs
Improved visibility of the machine and reduces maintenance of lights.
Bespoke Colour Finish - Single Colour
Your Marshall product can be painted in 13 bespoke colour finishes, including different blues, greens, yelllows, white, grey and black.
