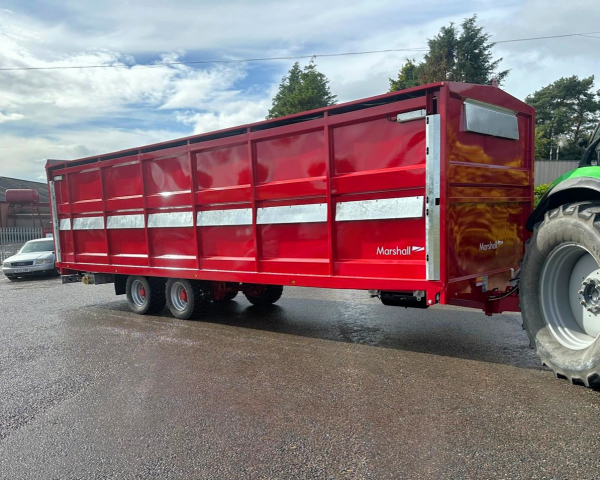

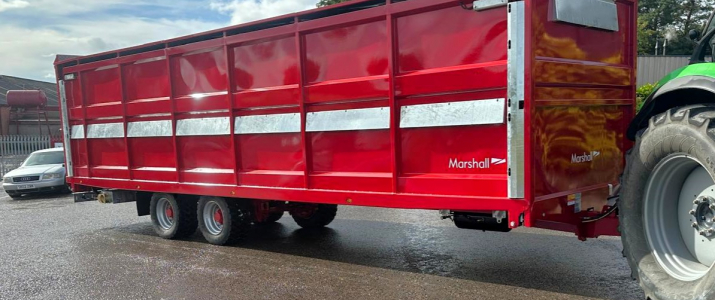

Agricultural Livestock Trailers / LST-32

Image coming soon...

Features and Specifications

  • Standard Equipment: Commercial Springs / 10 Stud Axle - 120mm(420x180) / 385-65x22.5 (10 Stud) Wheels / Mudflaps / Hydraulic Brakes / Spring Drawbar / Rear Crash Barrier (Container) / 3 x Standard Cattle Gates / Slurry Trap / LED Lights / Side Marker Lights / Colour - Marshall Red
  • Basic Price: £30,164.00
    • Features
      • Slurry Tank

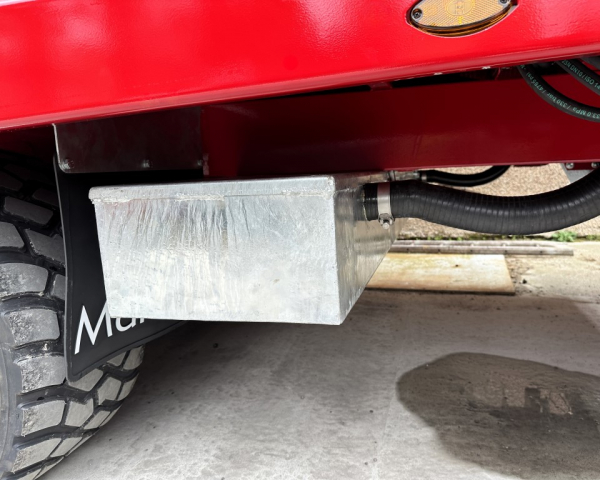

        Slurry Tank – The standard slurry tank is galvanised for a long service life and has a 6" port to make emptying and cleaning out straight-forward.

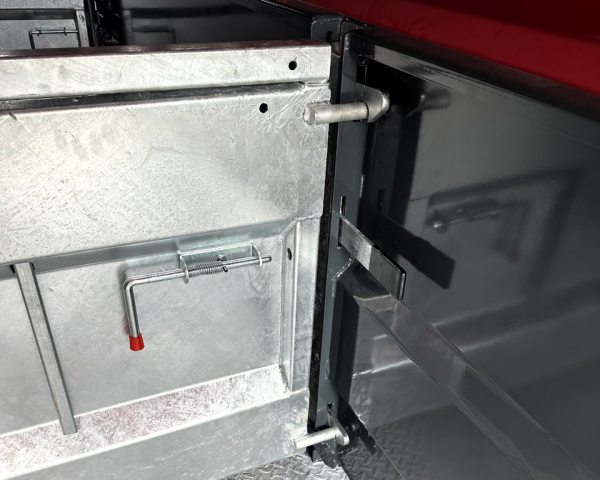

      • Slam Shut Gates

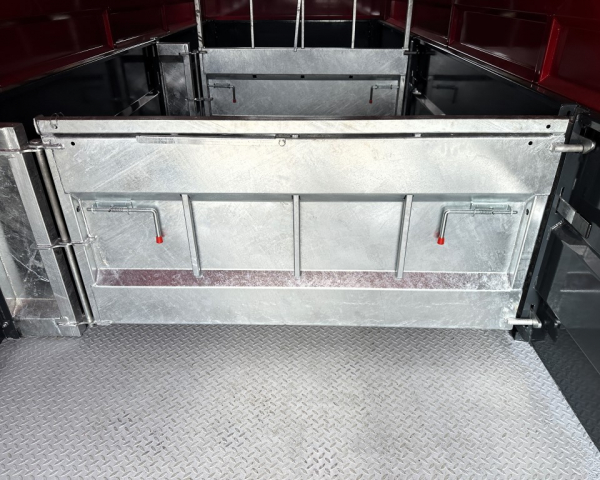

        Slam Shut Gates – The internal gates are all a slam shut design for ease of operation and galvanised for an improved lifespan.
      • Rear Gate Gas Strut Assist

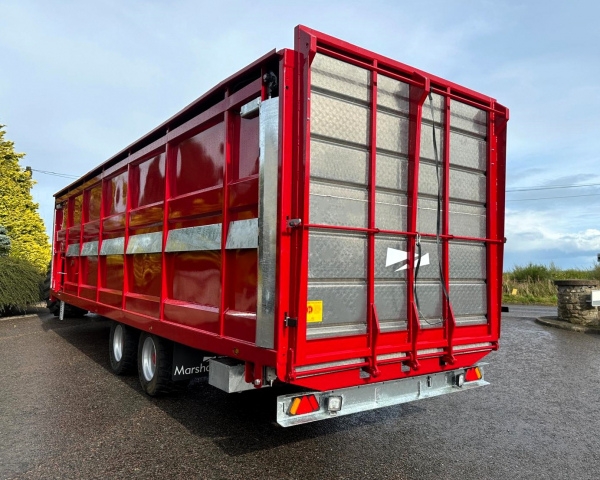

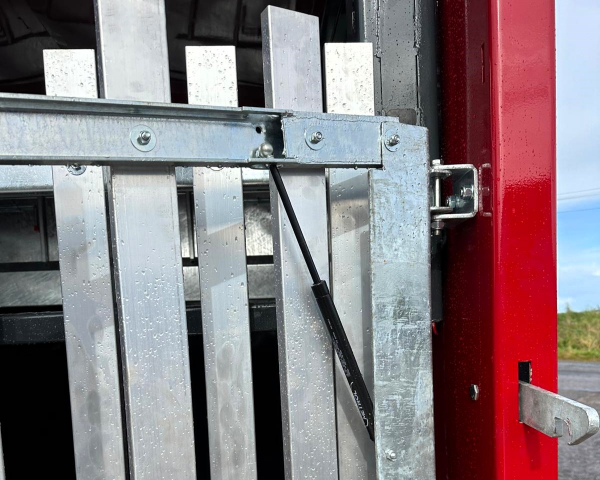

        Rear Gate Gas Strut Assist – The rear livestock container gates are aluminium and gas strut assisted for ease of operation.
      • Side Air Vents

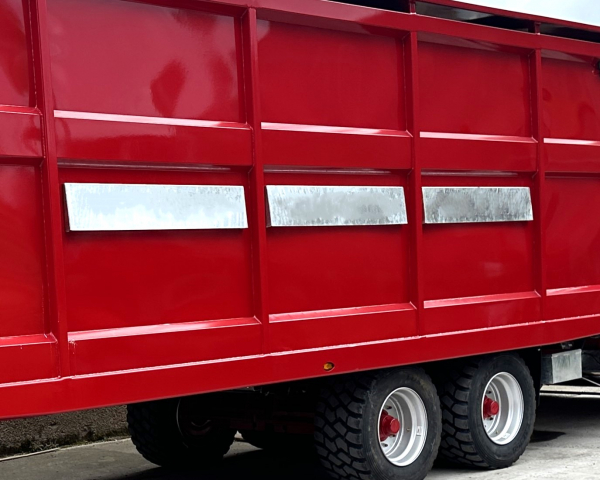

        Side Air Vents – Air vents are positioned at the front and down each side of the container, with galvanised covers to prevent weather ingress.
      • Paint Finish
        Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
      • Delivery
        Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
      • Spare Parts
        Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.
    • Overview

      Features at a Glance

      • Fully-welded steel construction for strength and rigidity.
      • Aluminium chequered plate rear ramp with two helper springs for easy loading.
      • Aluminium rear gates with assisting gas struts to make opening light & easy.
      • Galvanised internal slam shut gates as standard for ease of operation.
      • Fully-sheeted solid roof with gutters to prevent water flowing into the container.
      • Galvanised air vent covers to reduce weather ingress while ensuring ventilation.
      • Standard slurry tank with a large port for eacy cleaning.
      • Shot-blasted and finished with a 2 coat polyurethane for improved protection and lifespan.
      • Optional internal loading lights, front escape hatch and various running gear options are all available.
      • Hydraulic sheep decks are available as an option, with the full deck raising and lowering for easy loading and unloading. Instant changeover between cattle & sheep handling.
      • Genuine Marshall Spares – a full collection of spares are available for all models in the range.
    • Specification & Prices
      LST-21LST-25LST-28LST-32
      Price£21,500£23,700£25,390£30,164
      Body Size21' x 8' 4" / 6.4m x 2.54m25' x 8' 4" / 7.62m x 2.54m28' x 8' 4" / 8.53m x 2.54m32' x 8' 4" / 9.75m x 2.54m
      Standard Tyre Size385 - 65 x 22.5385 - 65 x 22.5385 - 65 x 22.5385 - 65 x 22.5
      Axle80mm 8 stud Tandem80mm 8 stud Tandem80mm 8 stud Tandem10 stud 120mm High Speed Commercial
      Brakes350 x 90350 x 90350 x 90420 x 180
      Carrying Capacity12 tons12 tons12 tons14 tons
      Floor Thickness (Steel) Durabar4mm4mm4mm4mm
      Lights & Hyd BrakesLED Standard / StandardLED Standard / StandardLED Standard / StandardLED Standard / Standard
      Internal Loading Height6' 7" / 2.01m6' 7" / 2.01m6' 7" / 2.01m6' 7" / 2.01m
      Internal Cattle / Sheep Divisions1223
      Slurry TrapStandardStandardStandardStandard
      OPTIONAL EQUIPMENT
      445 x 45 x 19.5 (Lowers bed height by 150mm)£1,360£1,360£1,360£1,360
      Front Mudflaps£95 / (DF-1)£95 / (DF-1)£95 / (DF-1)£95 / (DF-1)
      Spring Drawbar£845£845StandardStandard
      LED Beacon£145 / (DF-0.25)£145 / (DF-0.25)£145 / (DF-0.25)£145 / (DF-0.25)
      10 Stud Commercial Axle 406 x 120£1,364£1,364£1,364N/A
      10 Stud Commercial Axle 420 x 180£1,464£1,464£1,464Standard
      10 Stud Commercial Axle c/w ABS Brakes£4,620£4,620£4,620£3,306
      Air/Oil Brakes c/w Load Sensing£1,517 (DF-4)£1,517 (DF-4)£1,517 (DF-4)£1,517 (DF-4)
      Oil Load Sensing£750 (DF-2)£750 (DF-2)£750 (DF-2)£750 (DF-2)
      Front Escape Hatch£700£700£700£700
      Hydraulic Sheep Decks£9,500£9,900£10,300£11,300
    • Owners Info
    • FAQ's
      • What are the current regulations on agricultural trailer brakes?

        Read more

        What are the current regulations on agricultural trailer brakes?

        The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.

        There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.

        Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.

        Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.

        If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.

    • Additional Equipment Extra
      • 445-45 x 19.5 (10 Stud) Low Wh

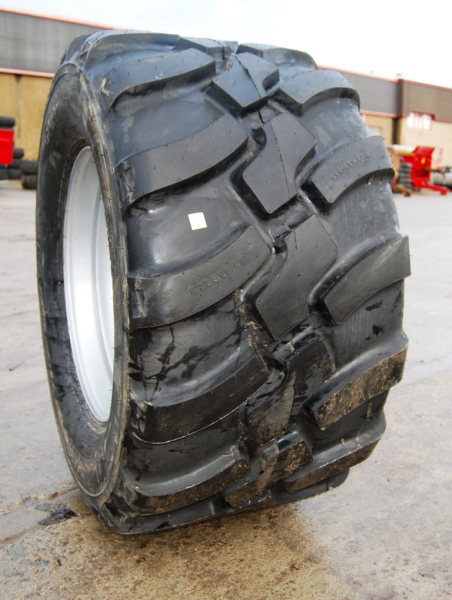

        445-45 x 19.5 (10 Stud) Low Wh

        Part No.
        0026-1

        Dealer Fit - 1hrs

        £1,360.00

        These tyres are similar to HGV tyres, and give fantastic performance on the road. In addition they lower the bed height of our bale trailers by 150mm or 75mm on other models, improving stability when moving bales or when a livestock container is fitted. Please note all prices are in place of standard tyres.

      • Front Mudflaps

        Front Mudflaps

        Part No.
        1402

        Dealer Fit - 1hrs

        £95.00

        Reduces spray and dirt from the road hitting the underside of the trailer body.

      • Air/Oil Brakes c/w Load Sensin

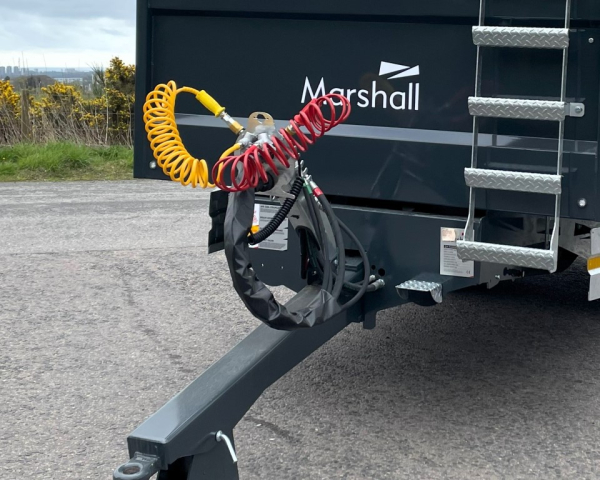

        Air/Oil Brakes c/w Load Sensin

        Part No.
        0203-2

        Dealer Fit - 4hrs

        £1,517.00

        Ideal if the machine is frequently used on the road, provides improved braking for higher speeds. Automatic load sensing available on springs & manual load sensing available on rockers.

      • Oil Brakes Load Sensing System

        Oil Brakes Load Sensing System

        Part No.
        0204

        Dealer Fit - 2hrs

        £750.00

        This optional extra prevents the trailer wheels from locking up by reducing the flow of oil to the brake rams. Only available on spring suspension.

      • ABS & Air Brakes System

        Image coming soon...

        Part No.
        0205-1

        Dealer Fit - 6hrs

        £3,306.00

        Ideal if the machine is frequently used on the road, provides HGV levels of braking. Option includes air brakes and is only available on spring suspension.

      • Side Toolbox

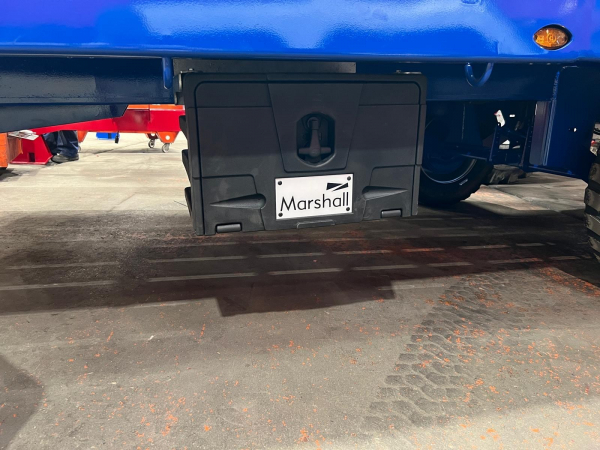

        Side Toolbox

        Part No.
        1702

        £120.00

        An ideal place to keep straps and ropes during journeys.

      • Front Escape Hatch

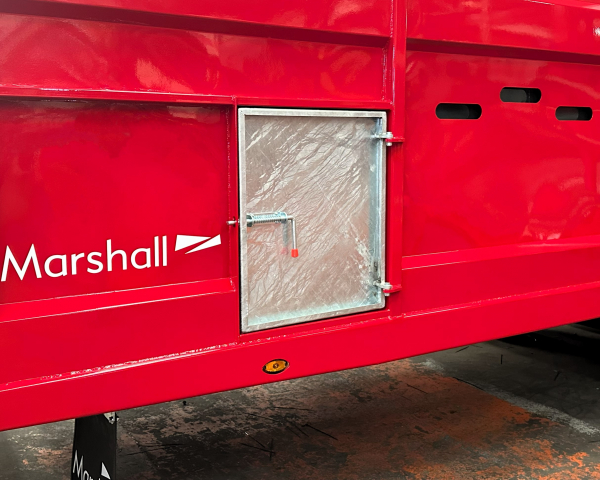

        Front Escape Hatch

        Part No.
        2708

        £700.00

        Allows the machine operator to escape in the event of agitated cattle when loading.

      • Additional Cattle Gate

        Image coming soon...

        Part No.
        2710

        Dealer Fit - 0.5hrs

        £664.00

        Allows cattle or livestock to be easily and safely divided up.

      • Sheep Decks - Hydraulic

        Sheep Decks - Hydraulic

        Part No.
        2736-3

        £11,300.00

        Hydraulically operated sheep deck; the whole deck raises and lowers to make loading and unloading straight-forward

      • Number Plate Bracket & Light

        Number Plate Bracket & Light

        Part No.
        2402

        Dealer Fit - 1hrs

        £75.00

        Allows your number plate to be easily changed.

      • LED Beacon

        LED Beacon

        Part No.
        2404-2

        Dealer Fit - 1hrs

        £145.00

        Ideal if the machine is frequently used on the road.

      • Internal Container Lights

        Internal Container Lights

        Part No.
        2411

        £380.00

        These lights illuminate the inside of the container, making it easier for loading livestock.

      • Colour - Marshall Blue

        Colour - Marshall Blue

        Part No.
        2501

        £0.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - Maserati Blue

        Colour - Maserati Blue

        Part No.
        2502

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - John Deere Green

        Colour - John Deere Green

        Part No.
        2503-2

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - Claas Green

        Colour - Claas Green

        Part No.
        2504

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - Fendt Green

        Colour - Fendt Green

        Part No.
        2505

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - Gloss Black

        Colour - Gloss Black

        Part No.
        2506

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - Ferrari Red

        Colour - Ferrari Red

        Part No.
        2507

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - Case Red

        Colour - Case Red

        Part No.
        2508

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - Kubota Orange

        Colour - Kubota Orange

        Part No.
        2509

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - JCB Yellow

        Colour - JCB Yellow

        Part No.
        2510

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour -Highway/Traffic Yellow

        Colour -Highway/Traffic Yellow

        Part No.
        2511

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - White

        Colour - White

        Part No.
        2512

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Colour - Gunmetal Grey

        Colour - Gunmetal Grey

        Part No.
        2513

        £375.00

        Bespoke colour option, allowing customer to customise the trailer.

      • Delivery

        Delivery

        Part No.
        9998

        £350.00

        Delivery charge to any UK mainland address.
