Drop-Side Agricultural Trailers / S-1

S-1

Features and Specifications



  • Standard Tyres: 23 x 8.5 x 12 - 50mm 5 stud axle
  • Body: 6' x 4' x 13"
  • Standard Equipment: Jackscrew
Basic Price: £2,900.00
  • Features
    • Mesh Sides
      Mesh Sides – Available on all models; these sides simply bolt on to the trailer. They provide an increased capacity for light loads such as leaves and grass.
    • Lighting Arrangement
      Lighting Arrangement – Lights are standard on our S/4 model upwards and optional on our S/2 model. The standard light units fitted are commercial grade, and sealed to prevent water damage. In addition it is also possible to upgrade to LED lights and LED beacons are available as an option for all models.
    • Pressed Panel Construction
      Pressed Panel Construction – This production technique increases strength and rigidity without adding significant weight, ensuring that the side panels can safely and easily be handled or removed.
    • Fully-braced Hinge Points
      Fully-braced Hinge Points – Our whole drop-side range uses the same hinge points, which are reinforced to stand up to the constant opening and closing action drop-side trailers have to endure.
    • Fully Welded Construction
      Fully Welded Construction – No compromises are made in the construction of our trailers, with every model utilizing a fully welded construction. This provides two major benefits; the overall durability of the trailer is increased and there is less opportunity for water to sit and cause rust.
    • Marshall Chassis Design
      Marshall Chassis Design – Our smaller models use a fully-welded channel chassis that provides unmatched strength while keeping weight down. Our S/85 and S/10 models use a square chassis configuration to improve stability and reduce flexing when loading. In addition our S/10 model also benefits from a further strengthened chassis, which employs an 8mm thick reinforcing plate over the front of the chassis members to provide incredible rigidity.
    • Axles & Braking
      Axles & Braking – Our Whole drop-side range comes complete with hydraulically operated brakes as standard; the only exception is our S/2 model, which has the option to fit hydraulic brakes. The size of the brakes on our drop-side range are also more then acceptable; providing braking efficiency in excess of the current legal requirements.
    • Paint Finish
      Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
    • Delivery
      Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
    • Spare Parts
      Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives you peace of mind when buying a Marshall that you will be properly supported well into the future.
  • Overview

    Features at a Glance

    • Large capacity
    • Fully welded construction eliminates rust traps
    • Fixed headboard (ensures a rigid body)
    • Fully braced hinge points (eliminates cracking of material)
    • Genuine Marshall Spares – a full collection of spares are available for all models in the range

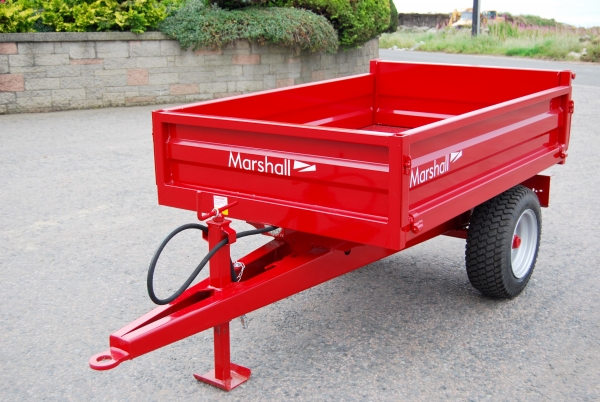

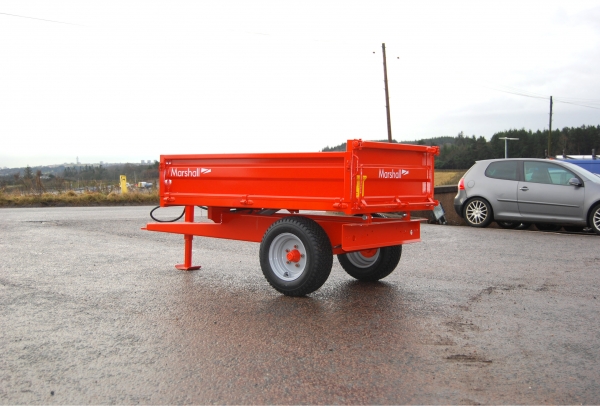

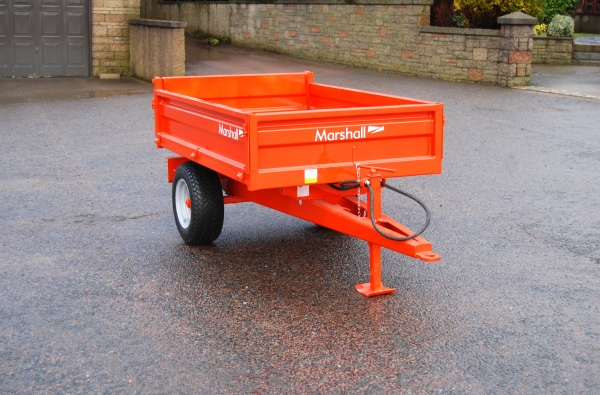

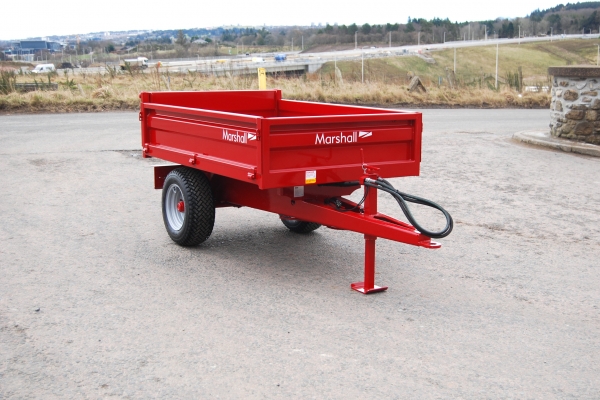

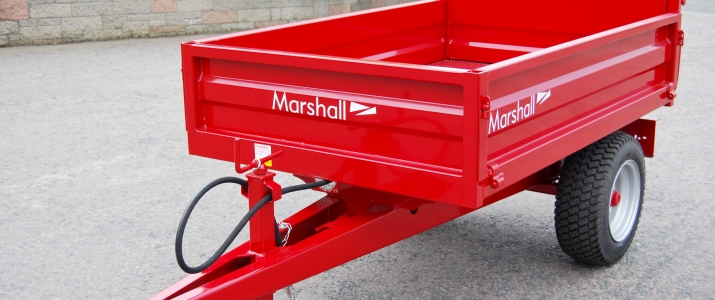

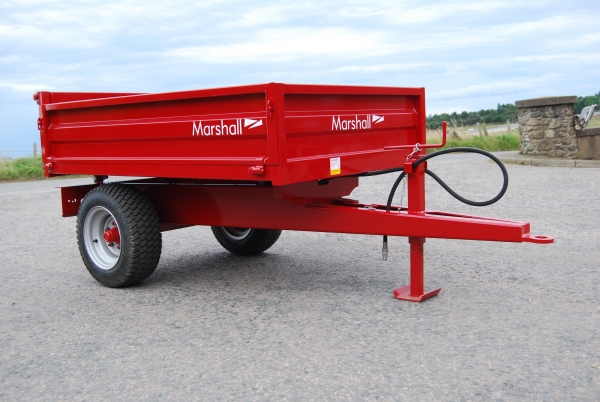

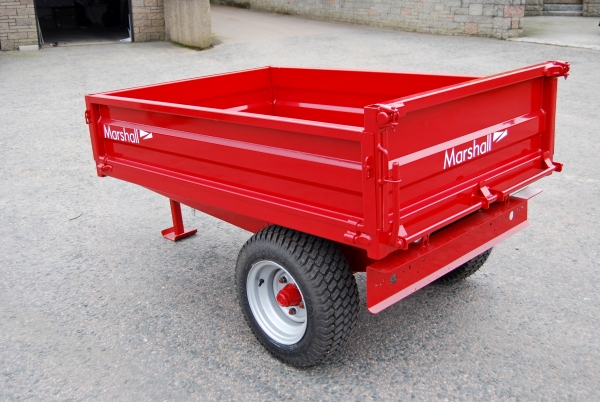

    The smallest model of trailer we produce is the S/1 drop side trailer. It has been designed to match small, compact tractors for use in the groundcare and leisure sectors. Despite being the entry-level model the entire trailer is built using CNC controlled machines to guarantee strength and finish.

    The drop side design provides excellent versatility, allowing the trailer to be used as a flat-bed or a proper trailer. This drastically increases the jobs this trailer can be used for, whether it is moving pallets, small machines, sand or grass; it really can handle all jobs. The S/1 also has the option of mesh sides, which further improves its versatility and makes it an ideal product for the leisure industry.

    The body of the S/1 is built from 2.5mm steel, which is the perfect blend between strength and manageability; the sides still have to be easily removable. The hinge points for the sides are also reinforced to prevent cracking or twisting under heavy loads. To improve rigidity the trailer also has a fixed headboard, reducing flexing during loading and transport.

    The trailer chassis utilises our tried and tested design developed over 60 years of trailer manufacturing, and provides exceptional strength. The S/1 is also fully-equipped with a hydraulic tipping ram, improving its efficiency and practicality.

    The result of all these features and construction standards, is a heavy-duty drop-side trailer that is strong, practical and well finished.

  • Specification & Prices
    S-1S-2S-4S-5S-6S-85S-10
    Basic Price£2,900£3,400£5,300£6,000£6,750£11,250£15,700
    Grain PriceN/AN/AN/A£7,572 / (DF-2.5)£8,683 / (DF-2.5) £13,200 / (DF-2.5) £17,916 (DF-2.5)
    Silage PriceN/AN/AN/A£9,494 / (DF-2.5)£10,852 / (DF-2.5)£15,620 / (DF-2.5)£20,606 (DF-2.5)
    Body Size - Imperial6' x 4' x 13"8' x 5' x 15"10' x 6' x 18"10' 6" x 6' 9" - 7' x 21"12' x 6' 9" - 7' x 21"14' x 7' 6" - 7' 9" x 24"16' x 7' 6" - 7' 9" x 24"
    Standard Tyre Size23 x 8.5 x 1210.0 x 1210.0 x 15 - 10 ply12.5 x 15 - 14 ply12.5 x 15 - 14 ply12.5 x 15 - 14 ply385 - 65 x 22.5
    Axle50mm 5 stud50mm 5 stud60mm 6 stud70mm 6 stud70mm 6 stud70mm 6 stud Tandem80mm 8 stud Tandem
    BrakeN/AN/A250 x 60300 x 60300 x 60300 x 60350 x 90
    Carrying Capacity1.5 tons2 tons4 tons5 tons6.5 tons8.5 tons10.5 tons
    Floor Thickness2.5mm2.5mm3mm3mm4mm4mm4mm
    Side Thickness2.5mm2.5mm2.5mm2.5mm2.5mm2.5mm2.5mm
    Lights£161 / (DF-1)£161 / (DF-1)StandardStandardStandardStandardStandard
    Hyd Brakes£335 / (DF-1.5)£335 / (DF-1.5)StandardStandardStandardStandardStandard
    Side Loading PanelsN/AN/AN/AStandardStandardStandardStandard
    Volume Basic26 cu.ft / 0.74 cu.mtrs50 cu.ft / 1.41 cu.mtrs90 cu.ft / 2.55 cu.mtrs128 cu.ft / 3.62 cu.mtrs147 cu.ft / 4.16 cu.mtrs216 cu.ft / 6.1 cu.mtrs248 cu.ft / 7.0 cu.mtrs
    Volume GrainN/AN/AN/A238 cu.ft / 6.7 cu.mtrs273 cu.ft / 7.7 cu.mtrs434 cu.ft / 12.2 cu.mtrs496 cu.ft / 18.3 cu.mtrs
    Volume SilageN/AN/AN/A457 cu.ft / 13 cu.mtrs525 cu.ft / 14.8 cu.mtrs704 cu.ft / 18.4 cu.mtrs930 cu.ft / 21.06 cu.mtrs
    Basic Trailer Weight340 kgs460 kgs840 kgs1100 kgs1360 kgs2310 kgs3400 kgs
    Loading Height Basic40" / 1.02m45"/1.14m52"/1.32m58"/1.47m60"/1.52m65"/1.65m71"/1.80m
    Tipping MechanismSingle Hydraulic RamSingle Hydraulic RamSingle Hydraulic RamSingle Hydraulic RamSingle Hydraulic RamTwin Hydraulic RamsSingle 5 Stage Hydraulic Ram
    OPTIONAL EQUIPMENT
    26.0 x 12£385 / (DF-0.5)£385 / (DF-0.5)N/AN/AN/AN/AN/A
    12.5 x 15N/AN/A£190 / (DF-0.5)StandardStandardStandardN/A
    340 x 65 x 18 RadialN/AN/AN/A£998 / (DF-0.5)£998 / (DF-0.5)£1996 / (DF-1)N/A
    400-60 x 15.5N/AN/A£530 / (DF-0.5)£420 / (DF-0.5)£420 / (DF-0.5)£840 / (DF-1)N/A
    550-45 x 22.5N/AN/AN/AN/AN/AN/A£1,840 / (DF-1)
    8 inch HatchN/AN/AN/A£185£185£185£185
    12 inch HatchN/AN/AN/AN/AN/A£228£228
    12 inch Hatch with SockN/AN/AN/AN/AN/A£295£295
    Spring Drawbar (Adjustable)N/AN/AN/AN/AN/A£845£845
    Swivel HitchN/AN/AN/AN/AN/AN/A£195
    Bale ExtensionN/AN/AN/A£489 / (DF-1)£489 / (DF-1)£760 / (DF-1)£760 / (DF-1)
    Harvest Ladders - Galvanized (pair)N/AN/AN/A£410 / (DF-0.25)£410 / (DF-0.25)£410 / (DF-0.25)£410 / (DF-0.25)
    Springs for Single AxleN/AN/A£480£480£510N/AN/A
    Trailer Cover (640g PVC)£205 / (DF-0.25)£205 / (DF-0.25)£205 / (DF-0.25)£205 / (DF-0.25)£205 / (DF-0.25)£217 / (DF-0.25)£267 / (DF-0.25)
    LED Beacon£145 / (DF-0.25)£145 / (DF-0.25)£145 / (DF-0.25)£145 / (DF-0.25)£145 / (DF-0.25)£145 / (DF-0.25)£145 / (DF-0.25)
    LED Tail Lights£326 / (DF-1)£326 / (DF-1)£175 / (DF-0.5)£175 / (DF-0.5)£175 / (DF-0.5)StandardStandard
    10 Stud Commercial AxleN/AN/AN/AN/AN/AN/A£1,364
    10 Stud Commercial Axle c/w ABS BrakesN/AN/AN/AN/AN/AN/A£4,620
    Air / Oil Brakes (non ABS) c/w Load SensingN/AN/AN/AN/AN/A£1,517 (DF-4)£1,517 (DF-4)
    Oil Load SensingN/AN/AN/AN/AN/A£750 / (DF-2)£750 / (DF-2)
    18" Mesh Sides£491 / (DF-1.5)£491 / (DF-1.5)£606 / (DF-1.5)£664 / (DF-1.5)£664 / (DF-1.5)£722 / (DF-1.5)£722 / (DF-1.5)
    Rear Tow Hitch c/w Lights & BrakesN/AN/AN/AN/AN/A425 / (DF-2)£325 / (DF-2)
    Jack Screw in lieu of SkidStandardStandard£174 (DF-0.5)£174 (DF-0.5)£174 (DF-0.5)£174 (DF-0.5)£174 (DF-0.5)
    Rear Ramps (Aluminium)£850 / (DF-0.25)£850 / (DF-0.25)£1700 / (DF-0.25)£1700 / (DF-0.25)£1700 / (DF-0.25)£1700 / (DF-0.25)£1700 / (DF-0.25)
  • Owners Info
    • Tyre Pressure Chart

      Download
    • Trailers Instruction Manual

      Download
    • Drop-side Range - Specification Chart

      Download
    • Marshall Brochure 2024

      Download
    • Order Drop-Side Agricultural Trailers spares online

      Read more
    • Additional Equipment for this machine

      Read more
  • Additional Equipment Extra
    • 18" Mesh Sides

      18

      Part No.
      065/03-0000

      Dealer Fit - 1.5hrs

      £491.00

      An ideal attachment for a trailer in the leisure industry or used for odd-jobs on the farm.

    • 26.0 x 12 Wheels

      26.0 x 12 Wheels

      Part No.
      083/01-26-12/05

      Dealer Fit - 0.5hrs

      £385.00

      These tyres reduce the ground compaction of the trailer; ideal in the groundcare industry. Please note all prices are in place of standard tyres.

    • Hydraulic Brakes

      Hydraulic Brakes

      Part No.
      050/11-3000

      Dealer Fit - 1.5hrs

      £335.00

      If the machine is going to be used on the road or on steep ground then hydraulic brakes are recommended. This price includes a ratchet handbrake.

    • Trailer Cover

      Trailer Cover

      Part No.
      057/02-0000

      Dealer Fit - 0.25hrs

      £205.00

      A simple 640g PVC cover to protect grain or other valuable loads.

    • Rear Ramps

      Image coming soon...

      Part No.
      065/10-3326

      Dealer Fit - 0.25hrs

      £850.00

      Manually attached ramp, ideal of unloading or loading small machines.

    • Lights

      Lights

      Part No.
      064/01-3008

      Dealer Fit - 1hrs

      £161.00

      If the machine is going to be used on the road then lights are recommended.

    • LED Beacon

      LED Beacon

      Part No.
      064/02-8020

      Dealer Fit - 0.25hrs

      £145.00

      Ideal if the machine is frequently used on the road.

    • LED Lights

      LED Lights

      Part No.
      064/02-9010

      Dealer Fit - 1hrs

      £325.00

      Improved visibility of the machine and reduces maintenance of lights.

    • Bespoke Colour Finish - Single Colour

      Bespoke Colour Finish - Single Colour

      Part No.
      068/08-9990

      £375.00

      Your Marshall product can be painted in 13 bespoke colour finishes, including different blues, greens, yelllows, white, grey and black.
