Construction – Tapered sides to allow for easy feeding. Every model also benefits from a fully welded steel construction with 5mm ends and 3mm or 4mm sides.
Floor – The entire range has 30mm treated pine floors, which allows effluent to escape and can easily be replaced when worn out.
Full Opening Removable Rear Door – Allows feed trailers to be easily cleaned out.
Retractable Drawbar – Maximizes the number of available feed spaces.
Axles – New 6 stud 70mm beam axles are used on both models in the range.
Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives of mind when you buy a Marshall that you will be properly supported well into the future.
Features at a Glance
- Timber Slatted Floor - allows silage effluent to drain away
- Removable Drawbar
- Swinging Taildoor - enables the user to efficiently clean out unused feed
- 4mm Angled Steel Sides - assists feeding for cattle
- Genuine Marshall Spares – a full collection of spares are available for all models in the range
The Marshall feed trailer range combines a unique, practical design with exception built quality. In addition all our feed trailer have a number useful features integrated into the design including a timber slatted floor, removable drawbar, swinging taildoor and angled sides to assist feeding.

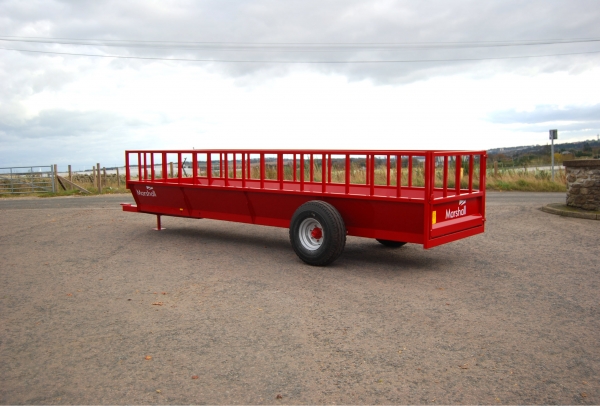

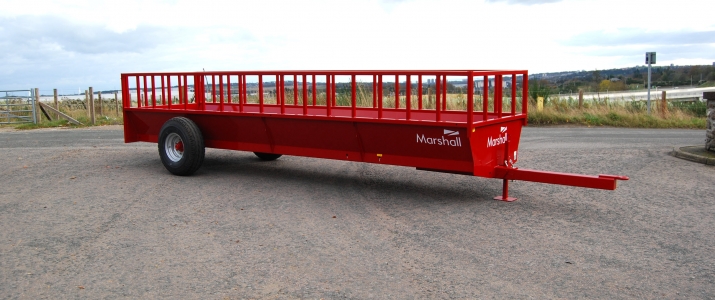

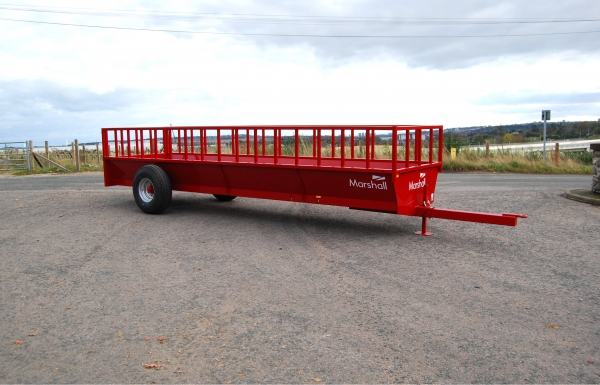

This 20' trailer has 40 feed spaces and 12.5 x 15 - 14ply tyres.
Specification & Prices
FT/15 FT/20 Price £2,400 £3,000 Length 15' x 5' 6" 20' x 5' 6" Feed spaces 32 40 Loading Height 60" 62" Sides 3mm Steel 4mm Steel Front 5mm Steel 5mm Steel Axles 6 Stud 70mm 6 Stud 70mm Tyres 11.5 x 15 - 12 ply 12.5 x 15 - 14 ply Retractable Drawbar Standard Standard Swinging Removable Taildoor Standard Standard OPTIONAL EQUIPMENT Jack Screw in lieu of Skid £144 (DF-0.5) £144 (DF-0.5) Tombstone Sides £525 £525 Removable Seating £900 (DF-2) £1,100 (DF-2)
- Owners Info
Allows the machine to be secured against theft. Padlock is not included.
Jack Screw in Lieu Skid
Dealer Fit - 0.5hrs
An essential for using machine with tractors without a pickup hitch.
Allows highland cows and other horned cattle to use the feed trailer.

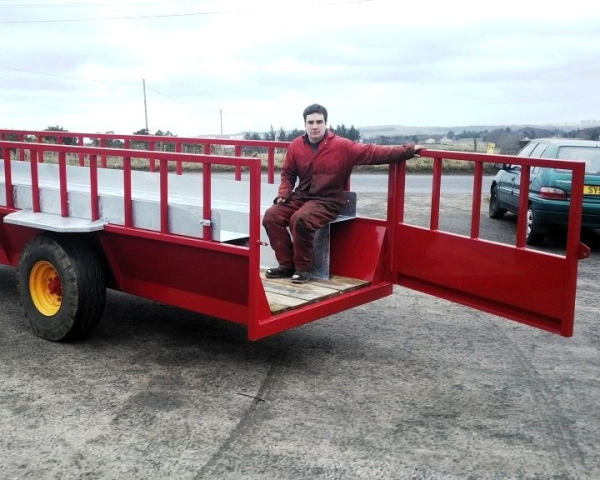

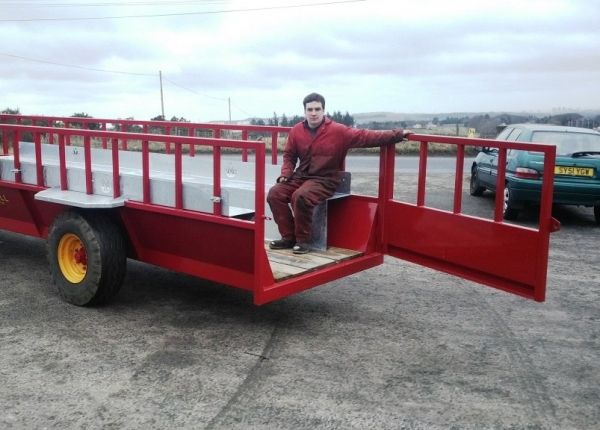

Allows the feed trailer to be converted for use as a people carrier.
If the machine is going to be used on the road then lights are recommended.
Bespoke Colour Finish - Single Colour
Your Marshall product can receive a bespoke paint finish. Please note paint is not guaranteed to be an exact colour match, although every effort will be made to match the colour as closely as possible.
