Value – Our livestock containers all provide an excellent value method for moving livestock. There is no need to have an HGV license or to have passed a trailer test; simply the ability to drive a tractor. Our fixed livestock container are particularly good value; there are few other ways to move livestock for the same price.
Box Design – Every model is constructed from steel and has its own chequered plate floor that is coated with anti-slip paint. Internal slam-shut dividing gates are standard on all models and can be positioned anywhere along the length of the container.

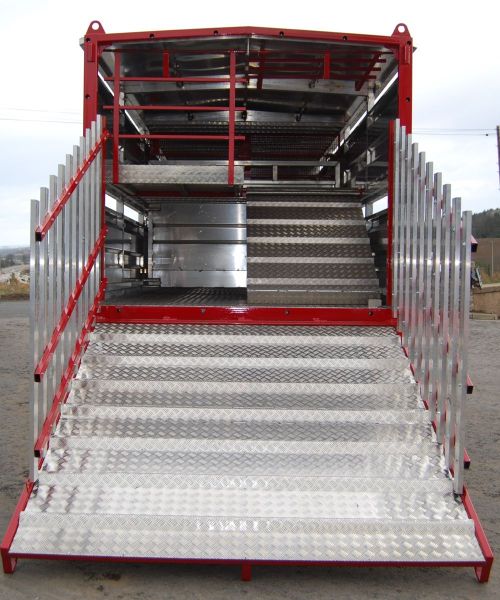

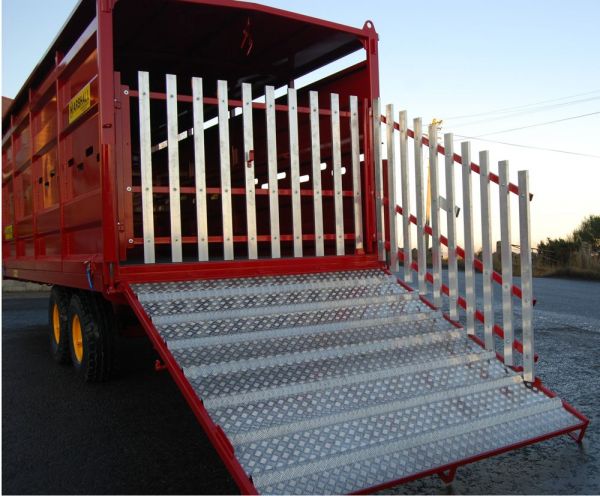

Loading Ramp Design – All models benefit from an aluminium chequered plate loading ramp that has two helper springs to assist closing and opening.
Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives of mind when you buy a Marshall that you will be properly supported well into the future.
Features at a Glance
- Each Container has its own floor which eliminates the necessity for the flooring on the host trailer to be in good condition
- Aluminium ramp c/w two helper springs, (ensures easy safe use)
- Fully sheeted solid roof (complies with full regulations)
- Internal dividing doors. (can be positioned every 18")
- All models are available with aluminium sheep carrying decks.
- Genuine Marshall Spares – a full collection of spares are available for all models in the range
Marshall trailers has a number of products for transporting cattle and sheep; all built to an extremely high standard with functionality and practicality at the core of the designs.
The convenience of having your own Marshall livestock container will surprise even the most sceptical of owners. Just think of the numerous times you have left stock grazing in a depleted pasture as you try to maximise the use of a pre booked haulier. With the rising popularity in 40kmh tractors on today’s farms, enabling larger distances to be covered, it is now possible for livestock to be moved when required using these containers.
The two options that are available to customers are a stand-alone container or a container permanently fixed to a trailer. Both have a durabar floor, aluminium ramp complete with helper springs and internal dividing doors that can be set every 18”. In addition all models can be fitted with optional sheep decks, which can also be easily stored within the container.
The usual high-quality Marshall build and flexible model options means the Marshall livestock container range is an excellent choice when transporting cattle or sheep.
Specification & Prices
21 25 28 32 Steel Container. (TRAN) £13,506 £15,390 £17,355 £19,616 Steel Box & Trailer - Fixed.(TRAN-FT) £19,616 £24,447 £28,825 £32,031 Steel Box & Trailer - Dismountable £23,485 £28,893 £32,745 £36,788 Trailer Model BC-21 BC-25-12T BC-28 BC-32-TAN Axle Size on Fixed Trailer 70mm 6 stud 80mm 8 stud 80mm 8 stud 80mm 8 stud Container Size 21' x 8' 25' x 8' 28' x 8' 32' x 8' Unladen Weight - Steel 1800 kg 2145 kg 2400 kg 2700 kg Approx. Carrying Weight 8000 kg 10000 kg 12000 kg 12000 kg Internal Loading Height 6' 6" 6' 6" 6' 6" 6' 6" Internal Cattle / Sheep Divisions 1 2 2 3 OPTIONAL EQUIPMENT Sheep Decks £4,109 / (DF-2) £4,350 / (DF-2) £4,550 (DF-2) £4,900 (DF-2) Additional Internal Divisions £664 / (DF-0.25) £664 / (DF-0.25) £664 / (DF-0.25) £664 / (DF-0.25) Front Escape Hatch £700 £700 £700 £700 15-55 x 17 £840 / (DF-1) N/A N/A N/A 340 x 65 x 18 Radial £1996 / (DF-1) N/A N/A N/A 385 x 65 x 22.5 £2,350 Standard Standard Standard 355-50 x 22.5 (Lowers bed height by 150mm) N/A £880 £880 £880 445 x 45 x 19.5 (Lowers bed height by 150mm) N/A £1,360 £1,360 £1,360 Spring Drawbar £845 £845 Standard Standard LED Beacon £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) £145 / (DF-0.25) LED Tail Light £205 / (DF-0.5) £205 / (DF-0.5) £205 / (DF-0.5) £205 / (DF-0.5) 10 Stud Commercial Axle 406 x120 N/A £1,364 £1,364 £1,364 10 Stud Commercial Axle c/w ABS Brakes N/A £4,620 £4,620 £4,620 Air/Oil Brakes c/w Load Sensing £1,517 (DF-4) £1,517 (DF-4) £1,517 (DF-4) £1,517 (DF-4) Oil Load Sensing £750 (DF-2) £750 (DF-2) £750 (DF-2) £750 (DF-2)
- Owners Info
How do you remove a cattle container from its host trailer?Read more
How do you remove a cattle container from its host trailer?
There are two main options for removing a Marshall cattle container from its host trailer; when using either method ensure that ratchet securing straps are removed before lifting and please follow proper safety procedures.
The first method involves attaching straps to lift eyes located on the top corners of Marshall containers and then using a tele-handler to lift the container off; in some cases it might be safer to use two tele-handler. Once the container has been lifted from the host trailer simply drive the host trailer away and place the container on the ground.
The second option for removing a container is only available to customers who specified lifting channels to be installed; these are simply two lengths of box section that run across the width of the container. The benefit of these is that they allow a tele-handler to place its forks in the box section and safely lift the container off; ideal for customer with smaller tele-handlers that do not have the necessary height to use the lifting eyes.
Marshalls strongly recommends cleaning out any container before removing and storing; this will significantly increase its life span.
What are the current regulations on agricultural trailer brakes?Read more
What are the current regulations on agricultural trailer brakes?
The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.
There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.
Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.
Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.
If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.
What is the best running gear; rockers or springs?Read more
What is the best running gear; rockers or springs?
This is a question we are constantly asked by customers since the type of running gear will have a huge effect on how the machine performs. There is no definitive answer on which suspension system is better since they both have their own benefits and drawbacks.
Split oscillating suspension or rockers as it is better known is ideal for machines that will carry high, potentially unstable loads as it eliminates lateral movement of the trailer ensuring the load can be safely transported. Crucially this is benefit is not achieved at the expense of ride quality since the tandems are still able move vertically and therefore allow the trailer to travel smoothly over rough ground. The stability of rockers makes them ideal on bale trailers, which are constantly transporting high loads, or on trailers working on steep ground.
Marshalls rocking beams are all extremely heavy-duty, and are produced on site by our skilled engineers. In addition to the robust design, all our tandems utilise devlon bushes, which significantly reduces wear and prolongs the life of the rockers.
The alternative to rockers is spring suspension, which is predominantly used on trailers carrying out a lot of road work. Springs provide an extremely smooth ride and perform better than rockers can on the road, particularly at higher speeds. This type of suspension also allows air brakes with load sensing to be fitted; automatic load sensing does not work on rocker tandem suspension. However the main disadvantage of springs is that they do allow lateral movement of the trailer, making them less stable on steep slopes or with higher loads.
Whatever suspension set-up you prefer Marshalls offers either as a no-cost option, ensuring your next Marshall will be exactly what you want.

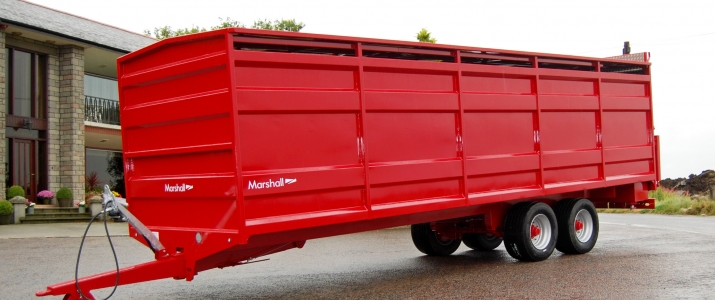

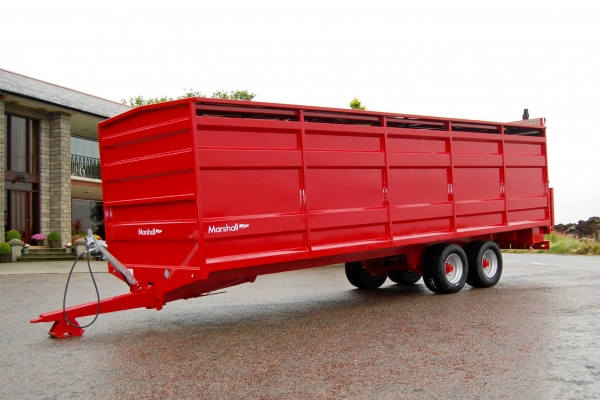

Steel Box & Trailer - Fixed
The standard steel box is fitted to a trailer chassis; this is non-removable.

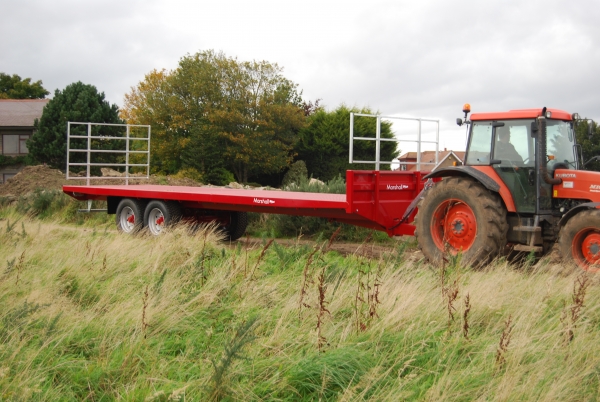

Host Trailer for Removable Boxes
The host trailer (BC/28) for the removable steel box.
Dealer Fit - 2hrs
Allows sheep and cattle to be transported in the container.

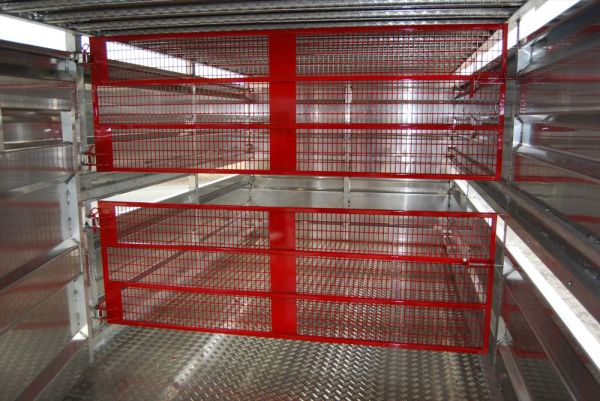

Additional Internal Divisions
Allows cattle or livestock to be easily and safely divided up.
Front Escape Hatch
Allows the machine operator to escape in the event of agitated cattle when loading.
No-cost Option. Provides excellent performance on the road.
Split Oscillating Suspension
No-cost Option. Reduces lateral movement making high-loads more stable.
355-50 x R22.5 Wheels
These tyres provide excellent road performance and reduce the bed height of bale trailers by 150mm and 75mm on other models. Please note all prices are in place of standard tyres.
NEW 385-65 x 22.5 Super Single Wheels
Dealer Fit - 1hrs
These tyres are brand new tyres that will stand up to extreme road work. They have a carrying capacity of 4.5-tons and are K-rated (110km/h).
550-45 x 22.5 Flotation Wheels
Dealer Fit - 1hrs
These tyres are excellent in wet conditions and significantly reduce the ground compaction of the machine; ideal if the machine is predominantly used off-road. Please note all prices are in place of standard tyres.
560-45 x 22.5 Radial Flotation Wheels
Dealer Fit - 1hrs
These tyres excell at both on road performance and off-road performance and keep the height of the trailer down. Please note all prices are in place of standard tyres.
445-45 x 19.5 Wheels
These tyres are similar to HGV tyres, and give fantastic performance on the road. In addition they lower the bed height of our bale trailers by 150mm or 75mm on other models, improving stability when moving bales or when a livestock container is fitted. Please note all prices are in place of standard tyres.
10 Stud Commercial Axles (406 x 120 S Cam)
Ideal if the machine is frequently used on the road. Please note price is for a pair of axles in lieu of 8 stud axles.
10 Stud Commercial Axles c/w ABS & Air Brakes
Ideal if the machine is frequently used on the road, and provides HGV levels of braking. Please note price is for a pair of axles in lieu of 8 stud axles and also includes the air brake option.
10 Stud Commercial Axles (420 x 180 S Cam)
Not recommended on this size of trailer; braking force generally too great for this size of trailer. Please note price is for a pair of axles in lieu of 8 stud axles.
Air/Oil Brakes c/w Load Sensing (Non ABS)
Ideal if the machine is frequently used on the road, provides improved braking for higher speeds. Automatic load sensing available on springs & manual load sensing available on rockers.
Oil Brakes Load Sensing System
This optional extra prevents the trailer wheels from locking up by reducing the flow of oil to the brake rams. Automatic load sensing available on springs & manual load sensing available on rockers.
Allows the machine to be secured against theft. Padlock is not included.
Rear Tool Box
An ideal place to keep straps and ropes during journeys.
Rear Box Pusher
Useful for ensuring a load of boxes are secured for traveling.
Dealer Fit - 0.25hrs
Manually attached ramps, ideal of unloading or loading machines.
Ideal if the machine is frequently used on the road.
LED Lights - Large
Improved visibility of the machine and reduces maintenance of lights.
Bespoke Colour Finish - Single Colour
Your Marshall product can be painted in 13 bespoke colour finishes, including different blues, greens, yelllows, white, grey and black.
