...Marshall machines sold since 1952

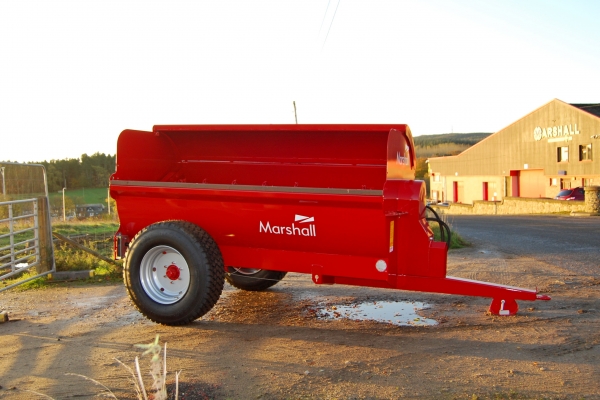

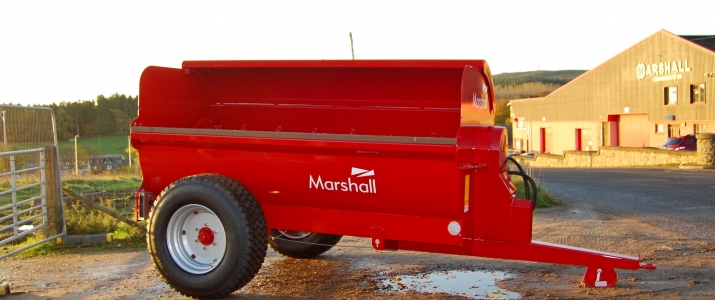

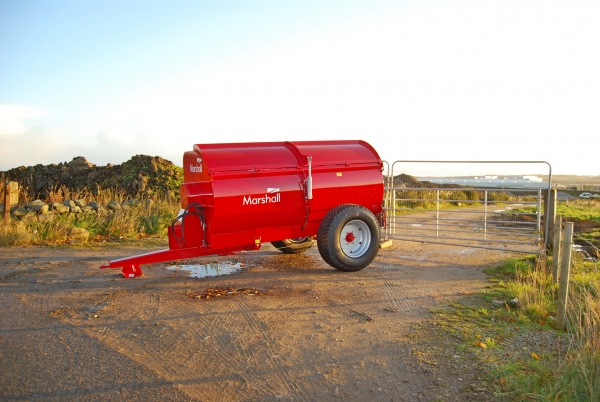

Muck Spreaders / MS60

MS60

Features and Specifications

  • Standard Tyres: 12.5 x 15 - 14 ply - 70mm 6 stud
  • Cubic Capacity: 6 cu. yds / 4.6 cu. mtrs
  • Body Dimensions: 10' x 54"
Basic Price: £5,096.00
  • Features
    • Barrel Design
      Barrel Design – The barrels on all models are fully welded and are either 4mm thick on our MS/45, MS/60 and MS/75 or 4.5mm thick on our larger models. The ends on all models are also heavy-duty with 6mm thick ends to provide an excellent service life.
    • Chassis Design
      Chassis Design – An integral chassis design has been part of the Marshall spreader for over thirty years. It removes any stress on the barrel of the spreader to prevent premature fatigue or cracking.
    • Lid Design
      Lid Design – Every model in the range benefits from a stainless steel lid ram to eliminate corrosion. Our lids open to 89 degrees, allowing easy loading and reducing the possibility of damage.
    • Brakes & Lights
      Brakes & Lights – Brakes and lights come as standard on all models, except our MS/45. This ensures all our spreaders comply with both highway and health & safety regulations.
    • Sprockets
      Sprockets – All sprockets are machined steel, not cast, and located by a 10 pitch spline to maximize service life. In addition the gearing of the sprockets on all our spreaders has been selected to provide the optimum spread.
    • Bearings
      Bearings – We only use plumber block bearings, which allows all our bearings to be placed away from corrosive slurry to limit potential damage.
    • Rotor Shaft
      Rotor Shaft – Every model benefits from a round perfectly balanced rotor shaft with chains mounted on four sides, any engineer would agree a round shaft is easier to balance. Heavy-duty starter flails allow the spreader to easily start and quickly achieve the optimum spreading speed.
    • Chains
      Chains – The flail chains on every model are case hardened to greatly reduce wear and the heads are welded on, not just held on with a pin or bolt. Large 3" x 2.5" heads and a substantial number of flail chains ensure a fast, efficient spread rate.
    • Paint Finish
      Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
    • Delivery
      Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
    • Spare Parts
      Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives of mind when you buy a Marshall that you will be properly supported well into the future.
  • Overview

    Features at a Glance

    • Precision steel sprockets (not cast) located to the shafts by a 10 pitch spline
    • The bottom input shaft is mounted by two bearings and the drive sprocket is positioned between them.
    • All bearings are mounted away from the drum limiting potential damage from corrosive slurry
    • A round perfectly balanced main rotor shaft with chains mounted on four sides
    • All our flail chains are over-engineered for the task at hand. They are case hardened to greatly reduce wear and the heads are fully welded on, not just held on with a pin or bolt. Large 3” x 3 1/2” heads (ensures a fast efficient spread rate)
    • Brakes and lights come as standard on all models (except MS45). This ensures the spreader complies with both highway and health & safety laws.
    • The spreader lid is opened by a hydraulic ram which is made from stainless steel to eliminate corrosion. The lid itself is extremely large allowing easy loading with today’s larger loading forks and grabs. It is also worth noting our lids open vertically so the muck does not have to be edged in.
    • Integral design chassis has been part of the Marshall spreader for over 30 years (ensures no fatigue that can produce premature cracking of the body)
    • Genuine Marshall Spares – a full collection of spares are available for all models in the range

    The MS60 is an ideal size for use on small-holdings or on farms with steep ground where larger spreaders could potentially be unsafe.

    It has a 4mm drum and 6mm ends, which is hugely over engineered for the size of the spreader and therefore drastically improves its lifespan. The chains used in this model are case hardened flail chains with fully-welded heads, not simply held on with a bolt or pin; this significantly reduces wearing of the chains and chain heads. These are mounted on four sides of a perfectly balanced main rotor, to help create a more even spread pattern.

    The sprockets used in the spreader are precision steel sprockets, not cast, located to the shaft by a 10 pitch spline. These sprockets are much stronger than cast sprockets and reduce the chance of component failure, prolonging the life of the spreader. In addition the bottom input shaft is mounted by two bearings and the drive sprocket is positioned between them for maximum strength, further reducing the chances of component failure. All bearings on Marshall spreaders are also mounted away from the drum limiting the potential damage from corrosive slurry.

    The spreader lid is opened by a hydraulic ram which is made from stainless steel to eliminate corrosion. The lid itself is extremely large allowing easy loading with today’s larger loading forks and grabs. It is also worth noting our lids open vertically so the muck does not have to be edged in.

    The overall strength of the spreader is further enhanced by the Marshall integral chassis design that has been used for over 30 years. This removes any stress on the drum of the spreader that could potentially cause premature cracking. On top of this the MS60 also has hydraulic brakes and lights integrated into the back rail as standard, ensuring it complies with all health and safety regulations.

    The MS60 is an excellent all-round spreader that can handle the majority of customers muck spreading needs.

  • Specification & Prices
    MS45MS60MS75MS90MS105
    Price£4,162£5,096£6,034£6,963£8,154
    Standard Tyre Size10.0 x 15 - 10 ply12.5 x 15 - 14 ply385 - 65 x 22.5385 - 65 x 22.5NEW 400-60 x 22.5
    Axle60mm 6 stud70mm 6 stud70mm 6 stud70mm 6 stud80mm 8 stud
    BrakesN/A300 x 60300 x 60300 x 60350 x 90
    Volume Capacity4.5 cu. yds / 3.4 cu.mtrs / 750gal6 cu. yds / 4.6 cu.mtrs / 1000gal7.5 cu. yds / 5.7 cu.mtrs / 1250gal9 cu. yds / 6.9 cu.mtrs / 1500gal10.5 cu. yds / 8 cu.mtrs / 1750gal
    Hydraulic Brakes£235 / (DF-1.5)StandardStandardStandardStandard
    Hydraulic LidStandardStandardStandardStandardStandard
    Drum Thickness4mm4mm4mm4.5mm4.5mm
    Ends6mm6mm6mm6mm6mm
    Case Hardened Chain Flails1/2" / 13mm1/2" / 13mm1/2" / 13mm9/16" / 14mm9/16" / 14mm
    Flail Chain - Quantity2228283438
    HP Requirements3055658595
    End Height70"73"81"82"82"
    Loading Height49"51"58"59"59"
    Body Dimension8' x 54"10' x 54"10' x 57"12' x 60"14' x 60"
    Lights151 / (DF-1)StandardStandardStandardStandard
    OPTIONAL EQUIPMENT
    Galvanized Finish£1,400£1,400£1,500£1,500£1,500
    Slurry Bib 8inch Deep - Galvanized£185 / (DF-0.5)£185 / (DF-0.5)£185 / (DF-0.5)£185 / (DF-0.5)£185 / (DF-0.5)
    11.5 x 15£68 / (DF-0.5)N/AN/AN/AN/A
    12.5 x 15£160 / (DF-0.5)N/AN/AN/AN/A
    REMOULD 400 - 60R x 22.5N/A£326 / (DF-0.5)£276 / (DF-0.5)£276 / (DF-0.5)N/A
    550 - 60 x 22.5N/AN/A£1000 / (DF-2)£1000 / (DF-2)£778 / (DF-1)
    Jack Screw in lieu of Skid£95£95£95£95N/A
    Feeder Unit£1,250£1,250£1,250£1,350£1,350
    LED Tail Lights£301 / (DF-1)£150 / (DF-0.5)£150 / (DF-0.5)£150 / (DF-0.5)£150 / (DF-0.5)
  • Owners Info
    • Tyre Pressure Chart

      Download
    • Rotary Muckspreader Instruction Manual

      Download
    • Marshall Pricelist and Brochure 2017

      Download
    • Order Muck Spreaders spares online

      Read more
    • Additional Equipment for this machine

      Read more
  • FAQ's
    • How do you prolong the life of a rotor-spreader?

      Read more

      How do you prolong the life of a rotor-spreader?

      The Marshall rotor-spreader is designed to be simple and effective; ensuring that customers will not be let down. However proper maintenance and care is also essential and can drastically improve the life of a spreader. The most straight-forward and most obvious way to prolong the life of a spreader is to follow the maintenance instructions in the machine handbook; the information below highlights some of the more common problems and solutions.

      The easiest way to ensure your spreader lasts is to clean it out after use and never leave it full of muck and slurry, both are extremely corrosive to the paint and bodywork. It sounds like a simple piece of advice, but many people never wash their spreader.

      Another important maintenance job is making sure that the four bearings on a spreader are properly greased; one of either end of the rotor shaft and two on the input shaft. This simple task combined with the intelligent placement of bearings on a Marshall spreader will prolong the life of the bearings and prevent premature failure.

      Finally, the most important maintenance advice that any rotor-spreader owner should follow is to watch the flail chains for stretching. As any spreader is used the stresses on the flail chains cause them to stretch and scrap against the spreader drum; this can quickly cause holes in the drum if not rectified. The solution is to remove the pin holding each chain and move it one link further up to shorten the chain.

    • What are the current regulations on agricultural trailer brakes?

      Read more

      What are the current regulations on agricultural trailer brakes?

      The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.

      There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.

      Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.

      Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.

      If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.

  • Additional Equipment Extra
    • REMOULD 400-60 x 22.5 Wheels

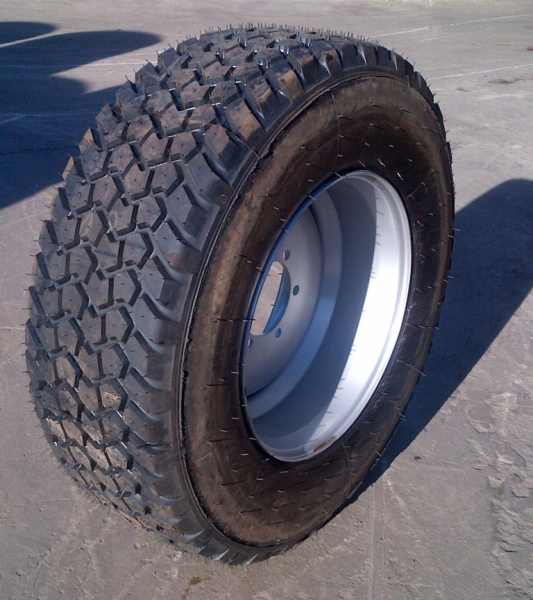

      REMOULD 400-60 x 22.5 Wheels

      Part No.
      083/01-400R-60/06

      Dealer Fit - 0.5hrs

      £326.00

      These tyres offer general all-round performance, effectively reducing ground compaction and performing reasonably well during road use. Please note all prices are in place of standard tyres.

    • 16/70x20 Track Tread Wheels

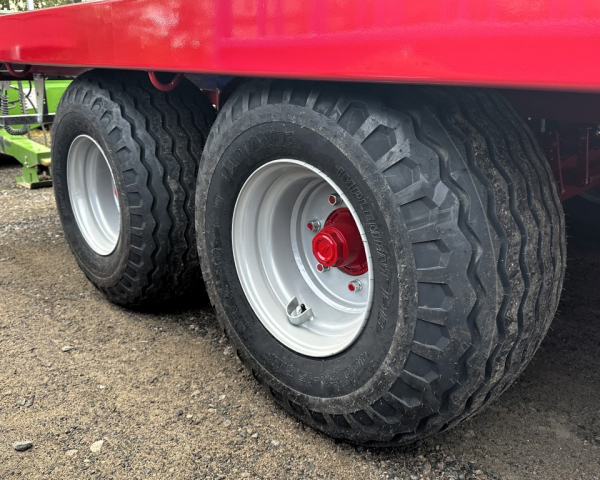

      16/70x20 Track Tread Wheels

      Part No.
      083/01-1671-20/06

      Dealer Fit - 0.5hrs

      £550.00

      These tyres reduce ground compactions and improve handling in wet conditions. Please note all prices are in place of standard tyres.

    • Hitch Lock

      Hitch Lock

      Part No.
      060/01-1090

      Dealer Fit - 0.25hrs

      £98.00

      Allows the machine to be secured against theft. Padlock is not included.

    • Jack Screw in Lieu Skid

      Jack Screw in Lieu Skid

      Part No.
      065/05-4000

      £95.00

      An essential for using machine with tractors without a pickup hitch.

    • Galvanised Finish

      Galvanised Finish

      Part No.
      067/01-1000

      £1,400.00

      Significantly improves the life-span of the spreader, since provides better protection against corrosive muck.

    • Slurry Bib 8" Deep

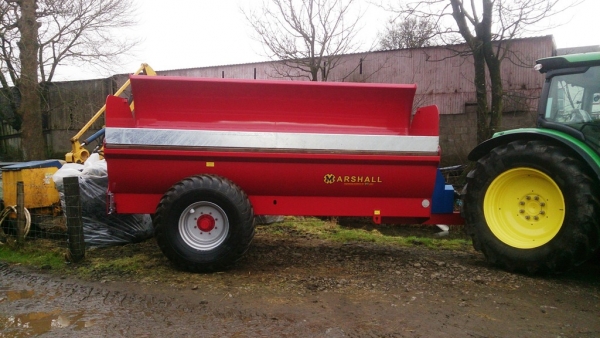

      Slurry Bib 8

      Part No.
      065/08-0320

      Dealer Fit - 0.5hrs

      £185.00

      Prevents slurry from slopping over the side of the spreader during transport.

    • Feeder Unit

      Feeder Unit

      Part No.
      065/08-0600

      £1,250.00

      A useful attachment to the spreaders, allowing them to be used to feed cattle.

    • LED Lights

      LED Lights

      Part No.
      064/02-9010

      Dealer Fit - 0.5hrs

      £150.00

      Improved visibility of the machine and reduces maintenance of lights.

    • Bespoke Colour Finish - Single Colour

      Bespoke Colour Finish - Single Colour

      Part No.
      068/08-9990

      £300.00

      Your Marshall product can receive a bespoke paint finish. Please note paint is not guaranteed to be an exact colour match, although every effort will be made to match the colour as closely as possible.

    • Bespoke Colour Finish - Dual Colour

      Bespoke Colour Finish - Dual Colour

      Part No.
      068/08-9992

      £600.00

      Your Marshall product can receive a bespoke paint finish. Please note paint is not guaranteed to be an exact colour match, although every effort will be made to match the colour as closely as possible.
