...Marshall machines sold since 1952


Drop-Side Agricultural Trailers / S/10

S/10

Features and Specifications

  • Standard Tyres: 400-60R x 22.5 - 80mm 8 stud Tandem Axles
  • Tapered Body: 16' x 7' 6" - 7' 9" - 24"
  • Standard Equipment: Hydraulic Brakes / Lights
Basic Price: £9,425.00
  • Features

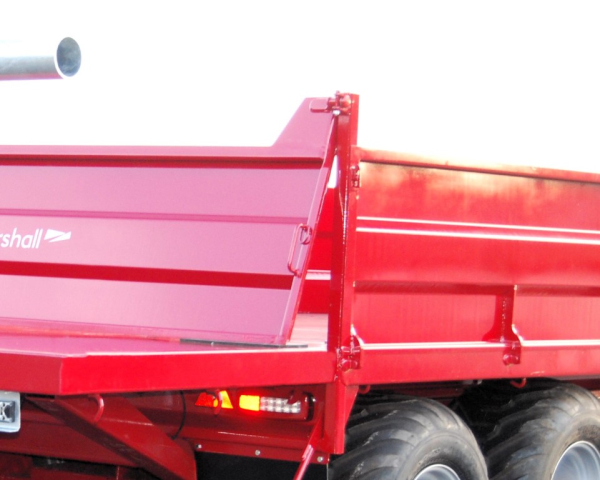

    • Grain Sides
      Grain Sides – Available on S/5 upwards; comes complete with a full height door to allow bulky loads to be safely discharged.

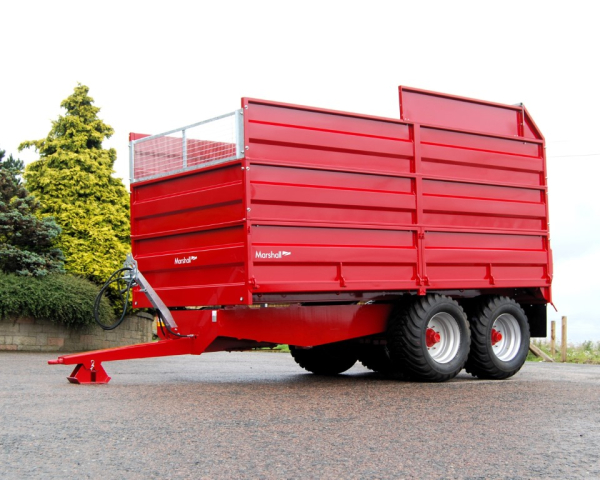

    • Silage Sides
      Silage Sides – Available on S/5 upwards; comes complete with two side loading panels and uses Marshall's unique hydraulic silage door locking system fitted to the rear of the trailer, preventing any damage from the side.
    • Mesh Sides
      Mesh Sides – Available on all models; these sides simply bolt on to the trailer. They provide an increased capacity for light loads such as leaves and grass.
    • Lighting Arrangement
      Lighting Arrangement – Lights are standard on our S/4 model upwards and optional on our S/2 model. The standard light units fitted are commercial grade, and sealed to prevent water damage. In addition it is also possible to upgrade to LED lights and LED beacons are available as an option for all models.
    • Pressed Panel Construction
      Pressed Panel Construction – This production technique increases strength and rigidity without adding significant weight, ensuring that the side panels can safely and easily be handled or removed.
    • Fixed Headboard
      Fixed Headboard – Every trailer in our drop-side range has a fixed headboard as standard. This increases torsional rigidity to reduce flexing when the trailer is being used.
    • Fully-braced Hinge Points
      Fully-braced Hinge Points – Our whole drop-side range uses the same hinge points, which are reinforced to stand up to the constant opening and closing action drop-side trailers have to endure.
    • Fully Welded Construction
      Fully Welded Construction – No compromises are made in the construction of our trailers, with every model utilizing a fully welded construction. This provides two major benefits; the overall durability of the trailer is increased and there is less opportunity for water to sit and cause rust.
    • Marshall Chassis Design
      Marshall Chassis Design – Our smaller models use a fully-welded channel chassis that provides unmatched strength while keeping weight down. Our S/85 and S/10 models use a square chassis configuration to improve stability and reduce flexing when loading. In addition our S/10 model also benefits from a further strengthened chassis, which employs an 8mm thick reinforcing plate over the front of the chassis members to provide incredible rigidity.
    • Spring Suspension Option
      Spring Suspension Option – Available on our tandem S/85 and S/10 models as a no-cost option and on our single-axle S/4, S/5 and S/6 models as an optional extra. The benefit of spring suspension is for road-work because it handles uneven surfaces better at speed.
    • Rocker Tandem Suspension Option
      Rocker Tandem Suspension Option – Only available on our tandem S/85 and S/10 models as a no-cost option. This suspension set-up is excellent on steep ground or when transporting high-loads since it prevents lateral movement improving the stability of the trailer.

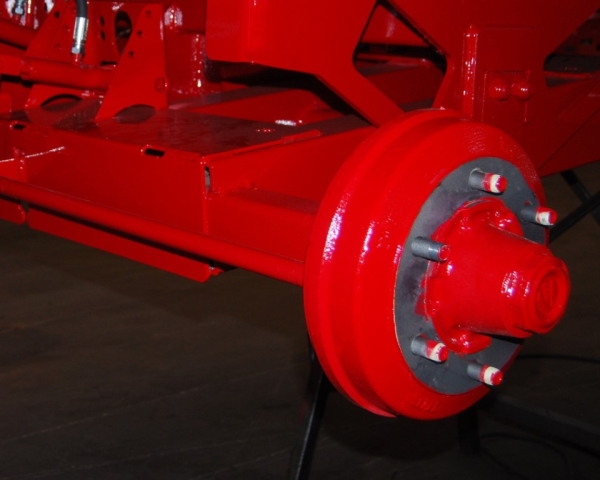

    • Axles & Braking
      Axles & Braking – Our Whole drop-side range comes complete with hydraulically operated brakes as standard; the only exception is our S/2 model, which has the option to fit hydraulic brakes. The size of the brakes on our drop-side range are also more then acceptable; providing braking efficiency in excess of the current legal requirements.
    • Paint Finish
      Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
    • Delivery
      Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
    • Spare Parts
      Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives of mind when you buy a Marshall that you will be properly supported well into the future.
  • Overview



    Features at a Glance

    • Large capacity
    • Tapered bodies ensure safe discharge of loads
    • Fully welded construction eliminates rust traps
    • Fixed headboard (ensures a rigid body)
    • Fully braced hinge points (eliminates cracking of material)
    • Hydraulic brakes and lights standard (S/4 upwards fulfils both HSE and highway regulations)
    • Full height grain doors (enables large bulky loads to be discharged)
    • All Marshall silage trailers use out unique hydraulic catches which fit to the rear of the trailer removing any chance of accidental damage from the side
    • All tandem axle models available with springs or split oscillating suspension - with no price difference
    • Genuine Marshall Spares – a full collection of spares are available for all models in the range

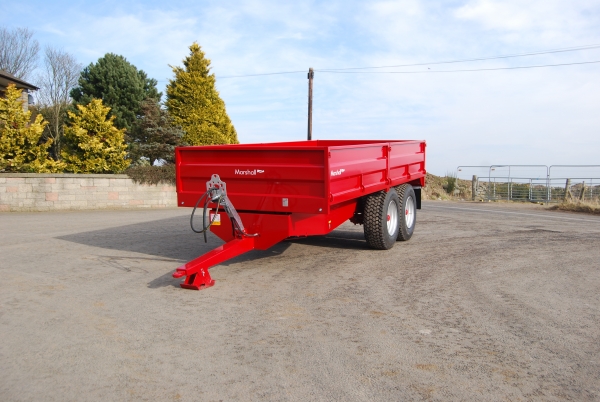

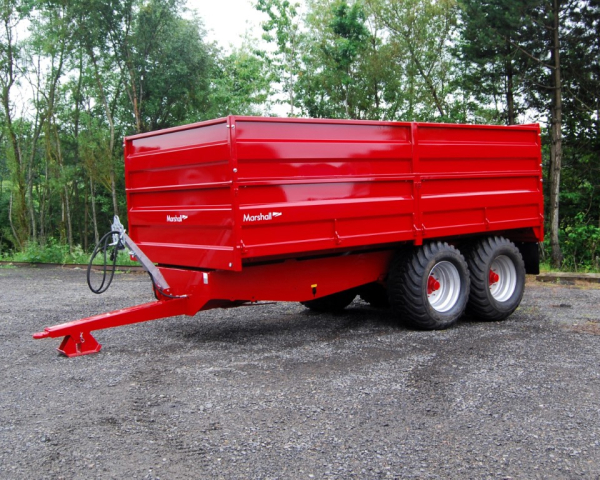

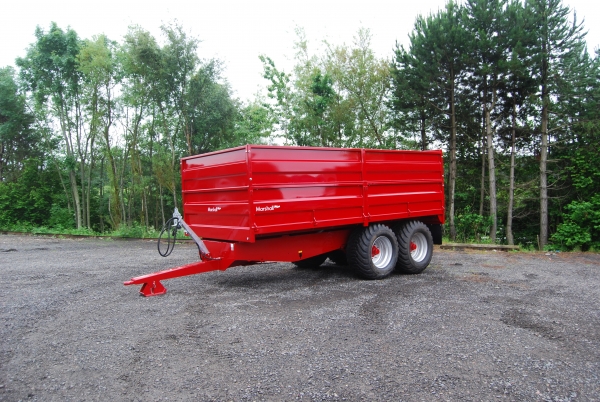

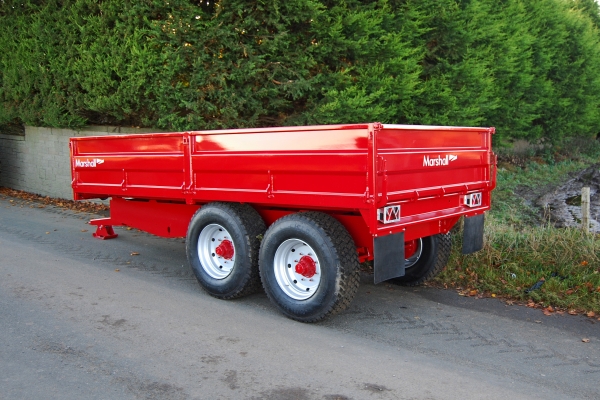

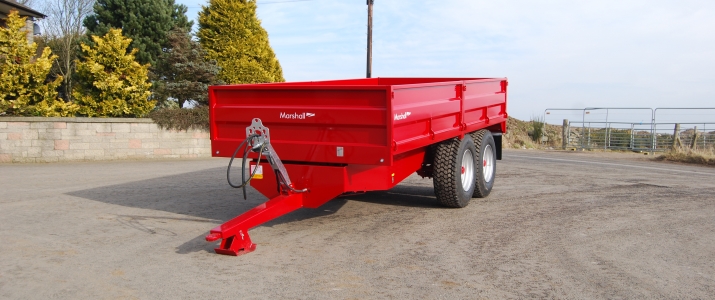

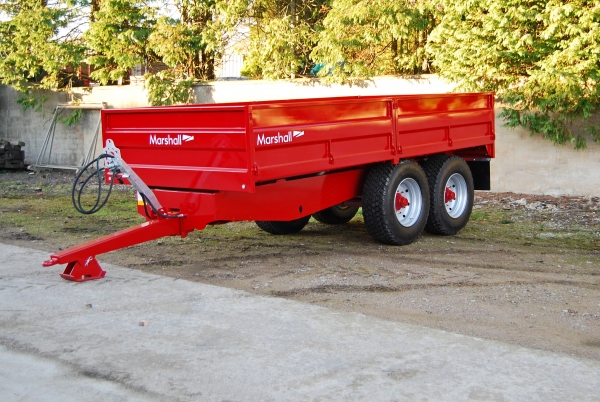

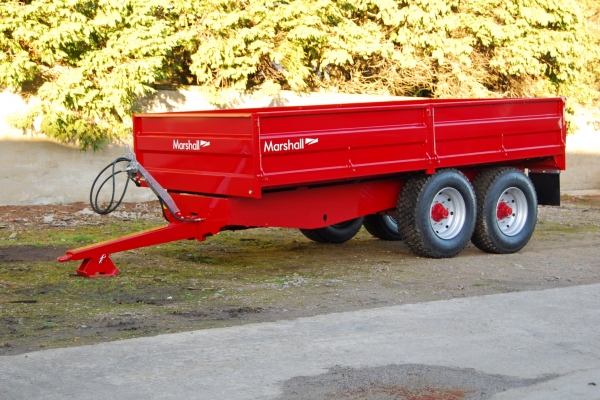

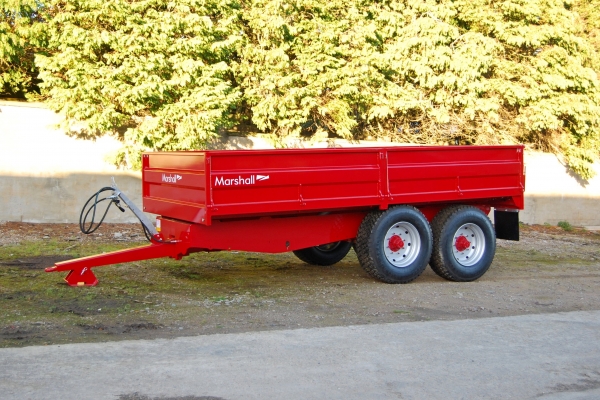

    The Marshall S/10 is the largest model in our drop side trailer range and probably the most versatile trailer we produce. Its ability to perform so many jobs combined with Marshalls excellent build quality means it is an exceptionally good value trailer.

    The drop side design provides excellent versatility, allowing the trailer to be used as a flat-bed or a proper trailer. This drastically increases the jobs this trailer can be used for, whether it is moving pallets, small machines, sand or grass; it really can handle all jobs. The S/10 also has the option of mesh, grain or silage sides making it an even more versatile piece of kit and maximising the trailers functionality.

    The body of the S/10 has a 4mm floor and 2.5mm sides in two panels, still allowing them to be easily removed if necessary. The hinge points for the sides are also reinforced to prevent cracking or twisting under heavy loads. To improve rigidity the trailer also has a fixed headboard, which reduces flexing during loading and transport. In addition to these design features the trailers body is tapered allowing loads to be safely discharged without the risk of them sticking in the trailer.

    The trailer chassis is Marshalls own unique design that provides unmatched strength and flexibility through its clever construction. The chassis is created by welding a 6mm steel plate over a heavy-duty channel to produce an immensely strong design. The S/10 is also fully-equipped with hydraulic tipping rams, hydraulic brakes and lights, which means it is ready to be used from the moment it is delivered.

    Significantly the S/10 has a tandem axle meaning either spring or rocker suspension can be fitted as a no-cost option. In turn this allows the S/10 to take on the most demanding jobs around the farm, whether it is simply moving silage or transporting grain on the road.

    Overall the Marshall S/10 is an exceptionally flexible trailer that is designed to fulfil a variety of roles and carry them out without any issues.

  • Specification & Prices
    S/1S/2S/4S/5S/6S/85S/10
    Basic Price£2,000£2,500£3,448£3,845£4,733£7,350£9,425
    Grain PriceN/AN/AN/A£4513 / (DF-2.5)£5362 / (DF-2.5) £8004 / (DF-2.5) £10,107 (DF-2.5)
    Silage PriceN/AN/AN/A£5231 / (DF-2.5)£6225 / (DF-2.5)£9047 / (DF-2.5)£11,290 (DF-2.5)
    Body Size - Imperial6' x 4' x 13"8' x 5' x 15"10' x 6' x 18"10' 6" x 6' 9" - 7' x 21"12' x 6' 9" - 7' x 21"14' x 7' 6" - 7' 9" x 24"16' x 7' 6" - 7' 9" x 24"
    Standard Tyre Size23 x 8.5 x 1210.0 x 12 - 10 ply10.0 x 15 - 10 ply11.5 x 15 - 10 ply12.5 x 15 - 14 ply12.5 x 15 - 14 ply400 - 60R x 22.5
    Axle50mm 5 stud50mm 5 stud60mm 6 stud70mm 6 stud70mm 6 stud70mm 6 stud Tandem80mm 8 stud Tandem
    BrakeN/AN/A250 x 60300 x 60300 x 60300 x 60350 x 90
    Carrying Capacity1.25 tons2 tons4 tons5 tons6.5 tons8.5 tons10.5 tons
    Floor Thickness2.5mm2.5mm3mm3mm4mm4mm4mm
    Side Thickness2.5mm2.5mm2.5mm2.5mm2.5mm2.5mm2.5mm
    Lights£151 / (DF-1)£151 / (DF-1)StandardStandardStandardStandardStandard
    Hyd Brakes£235 / (DF-1.5)£235 / (DF-1.5)StandardStandardStandardStandardStandard
    Side Loading PanelsN/AN/AN/AStandardStandardStandardStandard
    Volume Basic26 cu.ft / 0.74 cu.mtrs50 cu.ft / 1.41 cu.mtrs90 cu.ft / 2.55 cu.mtrs128 cu.ft / 3.62 cu.mtrs147 cu.ft / 4.16 cu.mtrs216 cu.ft / 6.1 cu.mtrs248 cu.ft / 7.0 cu.mtrs
    Volume GrainN/AN/AN/A238 cu.ft273 cu.ft434 cu.ft496 cu.ft
    Volume SilageN/AN/AN/A457 cu.ft525 cu.ft704 cu.ft930 cu.ft
    Basic Trailer Weight385 kgs460 kgs910 kgs1007 kgs1360 kgs2310 kgs2746 kgs
    Loading Height Basic40" / 1.02m45"/1.14m52"/1.32m58"/1.47m60"/1.52m65"/1.65m71"/1.80m

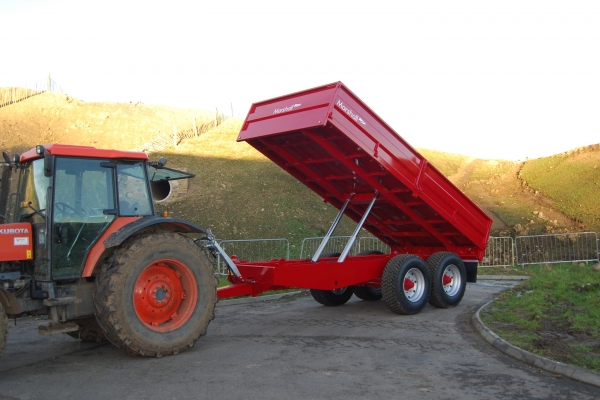

    Tipping MechanismSingle Hydraulic RamSingle Hydraulic RamSingle Hydraulic RamSingle Hydraulic RamSingle Hydraulic RamTwin Hydraulic RamsTwin Chrome Hydraulic Rams
    OPTIONAL EQUIPMENT
    26.0 x 12£345 / (DF-0.5)£345 / (DF-0.5)N/AN/AN/AN/AN/A
    11.5 x 15N/AN/A£68 / (DF-0.5)StandardN/AN/AN/A
    12.5 x 15N/AN/A£160 / (DF-0.5)£92 / (DF-0.5)StandardStandardN/A
    340 x 65 x 18 RadialN/AN/AN/A£762 / (DF-0.5)£670 / (DF-0.5)£1340 / (DF-1)N/A
    15-55 x 17N/AN/A£450 / (DF-0.5)£450 / (DF-0.5)£340 / (DF-0.5)£680 / (DF-1)N/A
    NEW 400-60 x 22.5N/AN/AN/AN/AN/AN/A£788 (DF-1)
    8 inch HatchN/AN/AN/A£118£118£118£118
    12 inch HatchN/AN/AN/AN/AN/A£142£142
    12 inch Hatch with SockN/AN/AN/AN/AN/A£306£306
    Spring DrawbarN/AN/AN/AN/AN/A£782£782
    Bale ExtensionN/AN/A£325 / (DF-1)£325 / (DF-1)£325 / (DF-1)£375 / (DF-1)£375 / (DF-1)
    Harvest Ladders - Galvanized (pair)N/AN/A£220 / (DF-0.25)£220 / (DF-0.25)£220 / (DF-0.25)£220 / (DF-0.25)£220 / (DF-0.25)
    Spring for Single AxleN/AN/A£360£360£390N/AN/A

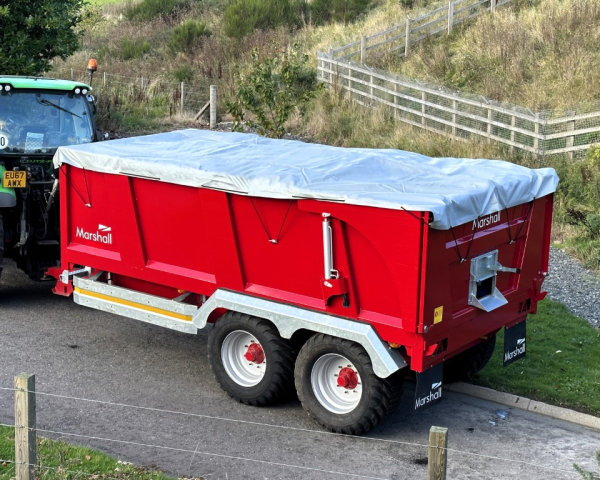

    Trailer Cover (640g PVC)£170 / (DF-0.25)£170 / (DF-0.25)£170 / (DF-0.25)£170 / (DF-0.25)£170 / (DF-0.25)£180 / (DF-0.25)£220 / (DF-0.25)
    LED Beacon£135 / (DF-0.25)£135 / (DF-0.25)£135 / (DF-0.25)£135 / (DF-0.25)£135 / (DF-0.25)£135 / (DF-0.25)£135 / (DF-0.25)
    LED Tail Lights£301 / (DF-1)£301 / (DF-1)£150 / (DF-0.5)£150 / (DF-0.5)£150 / (DF-0.5)£180 / (DF-0.5)£180 / (DF-0.5)
    10 Stud Commercial AxleN/AN/AN/AN/AN/AN/A£1,214
    10 Stud Commercial Axle c/w ABS BrakesN/AN/AN/AN/AN/AN/A£4,620
    Air / Oil Brakes (non ABS) c/w Load SensingN/AN/A£1,200£1,200£1,200£1,350 (DF-4)£1,350 (DF-4)
    Oil Load SensingN/AN/A£750£750£750£750 / (DF-2)£750 / (DF-2)
    18" Mesh Sides£425 / (DF-1.5)£425 / (DF-1.5)£425 / (DF-1.5)£475 / (DF-1.5)£475 / (DF-1.5)£525 / (DF-1.5)£525 / (DF-1.5)
    Rear Tow Hitch c/w Lights & BrakesN/AN/A£425£425£425425 / (DF-2)£325 / (DF-2)

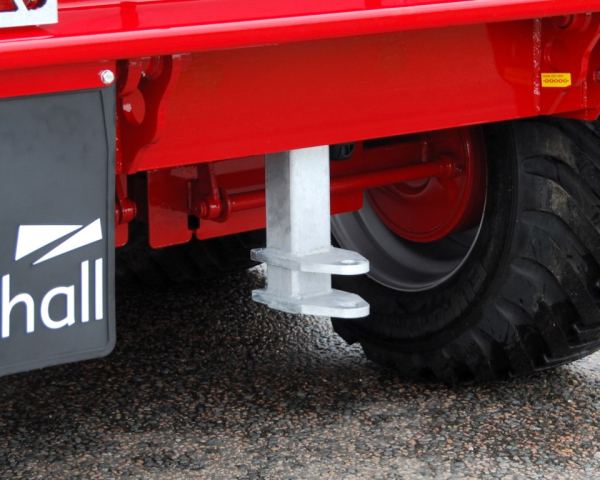

    Jack Screw in lieu of SkidStandardStandard£95 (DF-0.5)£95 (DF-0.5)£95 (DF-0.5)N/AN/A
    Rear Ramps (Aluminium)£650 / (DF-0.25)£650 / (DF-0.25)£1200 / (DF-0.25)£1200 / (DF-0.25)£1200 / (DF-0.25)£1200 / (DF-0.25)£1200 / (DF-0.25)
  • Owners Info
    • Tyre Pressure Chart

      Download
    • Fitting Instructions - Drop-side Trailer Bale Extensions

      Download
    • Trailers Instruction Manual

      Download
    • Marshall Pricelist and Brochure 2017

      Download
    • Order Drop-Side Agricultural Trailers spares online

      Read more
    • Additional Equipment for this machine

      Read more
  • FAQ's
    • What are the current regulations on agricultural trailer brakes?

      Read more

      What are the current regulations on agricultural trailer brakes?

      The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.

      There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.

      Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.

      Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.

      If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.

    • What is the best running gear; rockers or springs?

      Read more

      What is the best running gear; rockers or springs?

      This is a question we are constantly asked by customers since the type of running gear will have a huge effect on how the machine performs. There is no definitive answer on which suspension system is better since they both have their own benefits and drawbacks.

      Split oscillating suspension or rockers as it is better known is ideal for machines that will carry high, potentially unstable loads as it eliminates lateral movement of the trailer ensuring the load can be safely transported. Crucially this is benefit is not achieved at the expense of ride quality since the tandems are still able move vertically and therefore allow the trailer to travel smoothly over rough ground. The stability of rockers makes them ideal on bale trailers, which are constantly transporting high loads, or on trailers working on steep ground.

      Marshalls rocking beams are all extremely heavy-duty, and are produced on site by our skilled engineers. In addition to the robust design, all our tandems utilise devlon bushes, which significantly reduces wear and prolongs the life of the rockers.

      The alternative to rockers is spring suspension, which is predominantly used on trailers carrying out a lot of road work. Springs provide an extremely smooth ride and perform better than rockers can on the road, particularly at higher speeds. This type of suspension also allows air brakes with load sensing to be fitted; automatic load sensing does not work on rocker tandem suspension. However the main disadvantage of springs is that they do allow lateral movement of the trailer, making them less stable on steep slopes or with higher loads.

      Whatever suspension set-up you prefer Marshalls offers either as a no-cost option, ensuring your next Marshall will be exactly what you want.

  • Additional Equipment Extra
    • Grain Sides

      Grain Sides

      Part No.
      065/03-0185

      Dealer Fit - 2.5hrs

      £682.00

      Extremely useful when transporting grain; drastically increases carrying capacity.

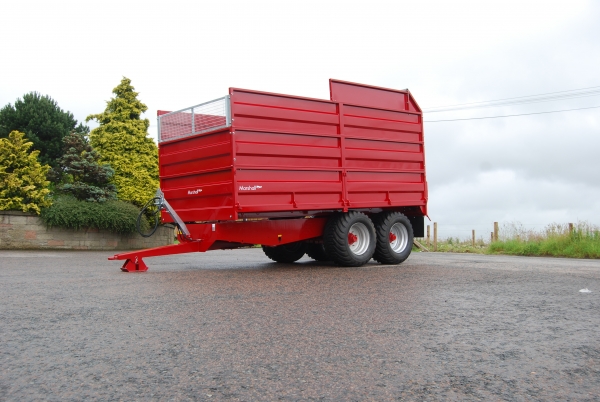

    • Silage Sides c/w Swinging Door

      Silage Sides c/w Swinging Door

      Part No.
      065/03-0285

      Dealer Fit - 2.5hrs

      £1,865.00

      Essential for carrying silage. Comes with swinging door and hydraulic latches.

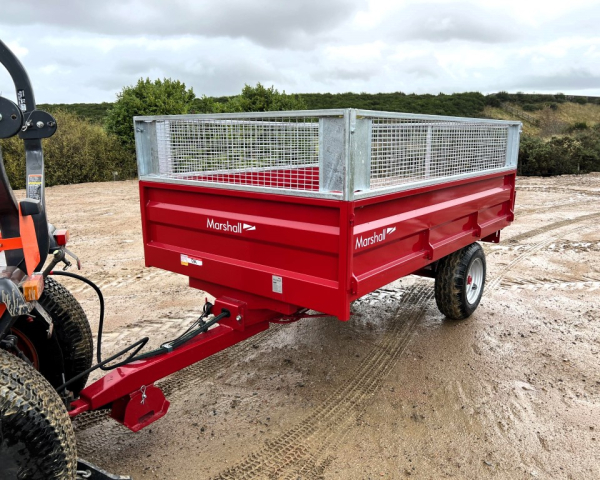

    • 18" Mesh Sides

      18

      Part No.
      065/03-0330

      Dealer Fit - 1.5hrs

      £525.00

      An ideal attachment for a trailer in the leisure industry or used for odd-jobs on the farm.

    • Top Silage Mesh Panel

      Top Silage Mesh Panel

      Part No.
      065/06-1700

      Dealer Fit - 0.5hrs

      £96.00

      Increases silage capacity by extending the height of the trailer front. Only available with swinging style silage sides.

    • Spring Suspension

      Spring Suspension

      Part No.
      076/01-0000

      £0.00

      No-cost Option. Provides excellent performance on the road.

    • Split Oscillating Suspension

      Split Oscillating Suspension

      Part No.
      085/03-0000

      £0.00

      No-cost Option. Reduces lateral movement making high-loads more stable.

    • 355-50 x R22.5 Wheels

      355-50 x R22.5 Wheels

      Part No.
      083/01-355-50

      £640.00

      These tyres provide excellent road performance and reduce the bed height of the trailer by 150mm. Please note all prices are in place of standard tyres.

    • 405-60x22.5 Wheels

      405-60x22.5 Wheels

      Part No.
      083/01-401-60

      Dealer Fit - 1hrs

      £198.00

      These tyres are wider than standard super singles and offer excellent performance on the road.

    • NEW 400-60 x 22.5 Wheels

      NEW 400-60 x 22.5 Wheels

      Part No.
      083/01-400-60

      Dealer Fit - 1hrs

      £788.00

      These tyres offer general all-round performance, effectively reducing ground compaction and performing reasonably well during road use. Please note all prices are in place of standard tyres.

    • 550-45 x 22.5 Flotation Wheels c/w Wings/Mudguards

      550-45 x 22.5 Flotation Wheels c/w Wings/Mudguards

      Part No.
      083/01-550-45

      £1,640.00

      These tyres are excellent in wet conditions and significantly reduce the ground compaction of the machine; ideal if the machine is predominantly used off-road. This price includes the necessary mudguards. Please note all prices are in place of standard tyres.

    • 445-45 x 19.5 Wheels

      445-45 x 19.5 Wheels

      Part No.
      083/01-445-45

      £1,160.00

      These tyres are similar to HGV tyres, and give fantastic performance on the road. In addition they lower the bed height of our bale trailers by 150mm, improving stability when moving bales or when a livestock container is fitted. Please note all prices are in place of standard tyres.

    • 16.5 x 70-18ply Wheels

      16.5 x 70-18ply Wheels

      Part No.
      083/01-165-70/08

      Dealer Fit - 1hrs

      £884.00

      These tyres offer general all-round performance, effectively reducing ground compaction and performing reasonably well during road use. Please note all prices are in place of standard tyres.

    • 10 Stud Commercial Axles (406 x 120 S Cam)

      10 Stud Commercial Axles (406 x 120 S Cam)

      Part No.
      050/01-1076

      £1,214.00

      Ideal if the machine is frequently used on the road. Please note price is for a pair of axles in lieu of 8 stud axles.

    • 10 Stud Commercial Axles c/w ABS & Air Brakes

      10 Stud Commercial Axles c/w ABS & Air Brakes

      Part No.
      050/03-1076

      £4,620.00

      Ideal if the machine is frequently used on the road, and provides HGV levels of braking. Please note price is for a pair of axles in lieu of 8 stud axles and also includes the air brake option.

    • 10 Stud Commercial Axles (420 x 180 S Cam)

      10 Stud Commercial Axles (420 x 180 S Cam)

      Part No.
      050/01-2076

      £1,314.00

      Not recommended on this size of trailer; braking force generally too great for this size of trailer. Please note price is for a pair of axles in lieu of 8 stud axles.

    • Air/Oil Brakes c/w Load Sensing (Non ABS)

      Air/Oil Brakes c/w Load Sensing (Non ABS)

      Part No.
      050/11-4000

      Dealer Fit - 4hrs

      £1,350.00

      Ideal if the machine is frequently used on the road, provides improved braking for higher speeds. Automatic load sensing available on springs & manual load sensing available on rockers.

    • Oil Brakes Load Sensing System

      Oil Brakes Load Sensing System

      Part No.
      082/03-1000

      Dealer Fit - 2hrs

      £750.00

      This optional extra prevents the trailer wheels from locking up by reducing the flow of oil to the brake rams. Automatic load sensing available on springs & manual load sensing available on rockers.

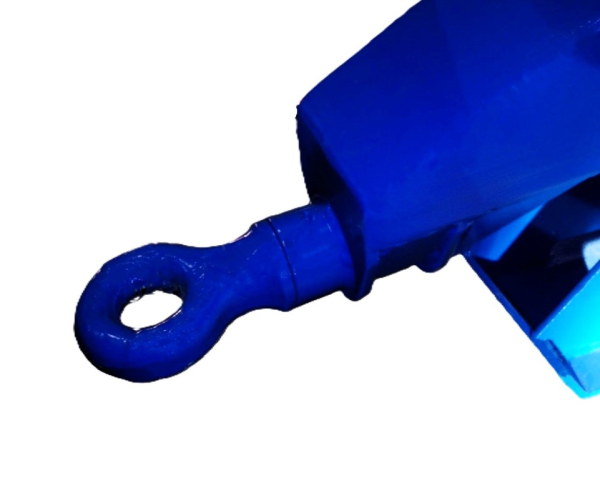

    • Spring Drawbar

      Spring Drawbar

      Part No.
      065/04-1000

      £782.00

      Reduces tractor bounce when operating machine on the road.

    • Top & Bottom Hinged Door

      Top & Bottom Hinged Door

      Part No.
      065/01-4090

      £175.00

      Allows the door to open from the top or bottom of the trailer when discharging its load.

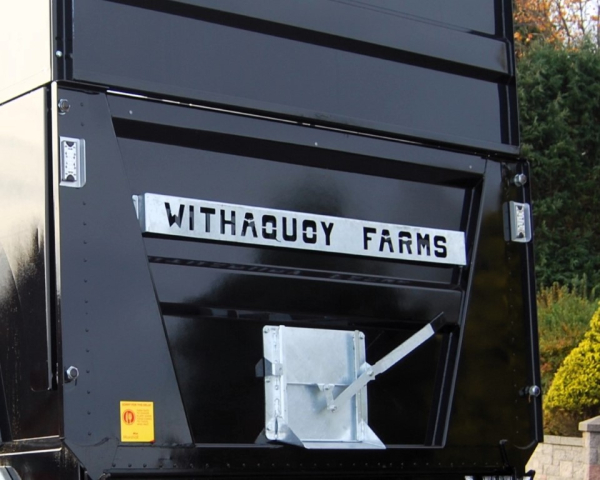

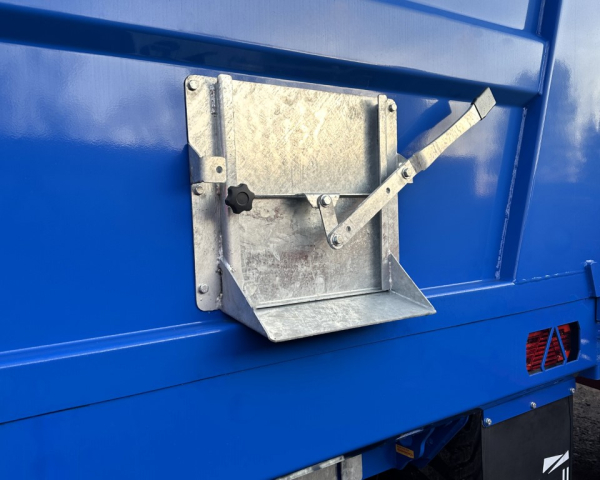

    • 8" Grain Hatch

      8

      Part No.
      065/07-8000

      £118.00

      Allows easy discharge of grain, with a simple and reliable design.

    • 12" Grain Hatch

      12

      Part No.
      065/07-1200

      £142.00

      Allows easy discharge of grain, with a simple and reliable design.

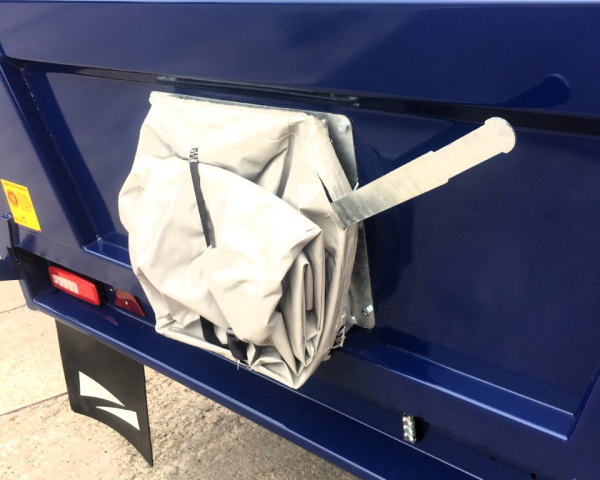

    • 12" Grain Hatch with Sock

      12

      Part No.
      065/07-1250

      £207.00

      Allows easy discharge of grain, with a simple and reliable design. The additional grain sock ensures the discharge is complete without excessive dust or mess.

    • Bale Extension

      Bale Extension

      Part No.
      065/03-9400

      Dealer Fit - 1hrs

      £375.00

      Increases length of trailer bed for use with bales.

    • Harvest Ladders (Pair)

      Harvest Ladders (Pair)

      Part No.
      065/02-6050

      Dealer Fit - 0.25hrs

      £220.00

      Ensures bales are held in position during transport.

    • Rear Tow Hitch c/w Lights & Brakes

      Rear Tow Hitch c/w Lights & Brakes

      Part No.
      065/04-5000

      Dealer Fit - 2hrs

      £325.00

      Allows multiple machines to be moved around the farm at once.

    • Swivel Hitch

      Swivel Hitch

      Part No.
      060/01-0050

      £155.00

      Reduces wear on the tractor pick-up hitch.

    • Hitch Lock

      Hitch Lock

      Part No.
      060/01-1090

      Dealer Fit - 0.25hrs

      £98.00

      Allows the machine to be secured against theft. Padlock is not included.

    • Mudflaps

      Mudflaps

      Part No.
      067/08-0600

      Dealer Fit - 0.5hrs

      £75.00

      Reduces mud splatter to the rest of the machine.

    • Trailer Cover

      Trailer Cover

      Part No.
      057/02-1101

      Dealer Fit - 0.25hrs

      £220.00

      A simple 640g PVC cover to protect grain or other valuable loads.

    • Taildoor Cover

      Taildoor Cover

      Part No.
      057/03-1000

      Dealer Fit - 1hrs

      £158.00

      This cover that can be used on silage doors to prevent maize and other crops passing through the mesh door.

    • Rear Ramps

      Rear Ramps

      Part No.
      065/10-3342

      Dealer Fit - 0.25hrs

      £1,200.00

      Manually attached ramps, ideal of unloading or loading machines. 3m long with a 8.5ton capacity.

    • Number Plate Bracket & Light

      Number Plate Bracket & Light

      Part No.
      064/03-6390

      Dealer Fit - 1hrs

      £75.00

      Allows your number plate to be easily changed.

    • LED Beacon

      LED Beacon

      Part No.
      064/02-8020

      Dealer Fit - 0.25hrs

      £135.00

      Ideal if the machine is frequently used on the road.

    • LED Lights

      LED Lights

      Part No.
      064/03-5600

      Dealer Fit - 1hrs

      £180.00

      Improved visibility of the machine and reduces maintenance of lights.

    • Bespoke Colour Finish - Single Colour

      Bespoke Colour Finish - Single Colour

      Part No.
      068/08-9990

      £200.00

      Your Marshall product can receive a bespoke paint finish. Please note paint is not guaranteed to be an exact colour match, although every effort will be made to match the colour as closely as possible.

    • Bespoke Colour Finish - Dual Colour

      Bespoke Colour Finish - Dual Colour

      Part No.
      068/08-9992

      £400.00

      Your Marshall product can receive a bespoke paint finish. Please note paint is not guaranteed to be an exact colour match, although every effort will be made to match the colour as closely as possible.
