Hybrid Dumper Trailers / HD/6

HD/6

Features and Specifications

  • Standard Tyres: 12.5 x 15 - 14ply
  • Standard Axle: 70mm 6 Stud Axle 300 x 60 Brakes
  • Capacity: 6 tons / 3.7 cu.mtrs
  • Body: 11' 6" x 6' 6" x 1' 9" c/w Scow End
Basic Price: £5,485.00
  • Features

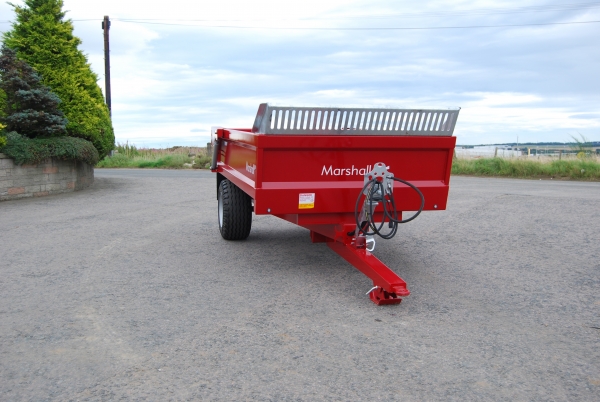

    • HD Stone Guard
      HD Stone Guard – The HD range comes with a standard stone guard at the front to help protect the tractor operator and the tractor itself from debris.It is formed by our CNC machines and is bolt-on allowing it to be replaced if it is damaged or completely removed for better visibility.

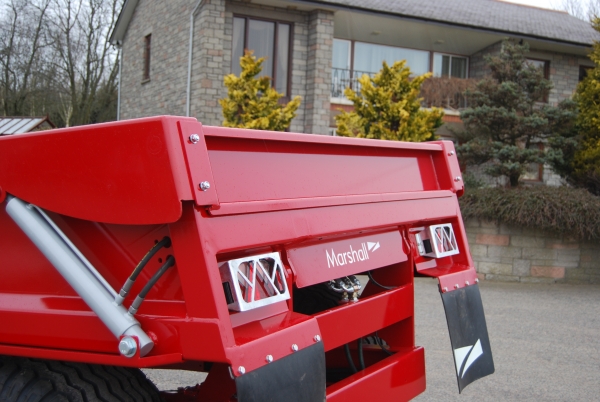

    • HD Lighting Arrangement
      HD Lighting Arrangement – Every model in the HD range has lights as standard and uses the sealed wiring system fitted to all Marshall products, preventing water damage and allowing the light units to be easily replaced if damaged. In addition the lights are recessed into the back rails and guarded to make them as safe as possible.
    • HD Range: Rubble & Stone
      HD Range: Rubble & Stone – The floor on the HD/6 model is 6mm thick, with the rest of the range benefiting from an 8mm rock floor. The HD/6 and HD/8 models have 5mm sides, with larger models being fitted with 6mm sides. The pressed design of the body further adds to the overall strength and rigidity; ensuring each model can handle rubble, stone or any other heavy material. In addition each model has been designed with a very generous cubic capacity to ensure that the stated loads can actually be carried.
    • HD Range: Muck
      HD Range: Muck – The large cubic capacities and robust build makes the hybrid dumper range ideal for carrying muck. The elevated rear tipping points and high tipping angle allows the load to be heaped up when discharged.
    • HD Hydraulic Door Design
      HD Hydraulic Door Design – The entire HD range benefits from the option of a hydraulic door to compliment the standard scow-end and increase carrying capacity. The hydraulic door option can also be “dealer fitted” to every model, allowing the trailers to be upgraded in the future.
    • HD Tipping Mechanism
      HD Tipping Mechanism – The tipping mechanism is also very robust; with the HD/12 model upwards utilising chrome rams to prevent corrosion and premature seal failures. In addition the tipping points on larger models are formed by 50mm steel pins.
    • HD Suspension
      HD Suspension – Our tandem axle models all come as standard with split-oscillating suspension, which eliminates lateral movement. This combined with a wide chassis and wide spaced rams ensures maximum stability when tipping.
    • Paint Finish
      Paint Finish – Since November 2011 we have shot-blasted, this is acknowledged in the paint industry as the best possible method for preparing steel for painting. The shot-blasting creates a profile for the paint to adhere to, improving adhesion and in turn the protection offered to the steel. Our five man team of trained sprayers then use the latest spraying equipment to finish our products with a dual layer paint finish. Every machine is finished with 80 microns of high-build primer and 50 microns of gloss polyurethane; this combination provides excellent protection and a high-quality finish.
    • Delivery
      Delivery – Marshall Trailers uses a computerized build system to plan production to ensure that machines are delivered on time. The final stage of delivery is undertake by our two artic lorries, a 7.5ton rigid lorry and a number of other haulage partners.
    • Spare Parts
      Spare Parts – Marshall Trailers has a full selection of spare parts for all our ranges, most of which can be dispatched immediately. In some cases we have spares for machines dating back forty years, which gives of mind when you buy a Marshall that you will be properly supported well into the future.
  • Overview

    Features at a Glance

    • A 55° tip angle (ensures safe and efficient discharge of any load)
    • Elevated rear tipping point allows loads to be easily heaped up
    • Optional hydraulic door that can be ordered from new or "dealer fitted" at a later date without any paint rectification or fabrication
    • Fully integrated rear lights positioned to avoid damage from the discharging load
    • 6mm rock floor and 5mm sides limit the potential damage to the body
    • Genuine Marshall Spares – a full collection of spares are available for all models in the range

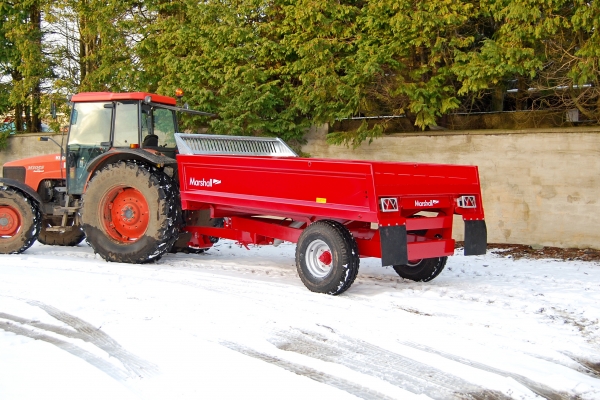

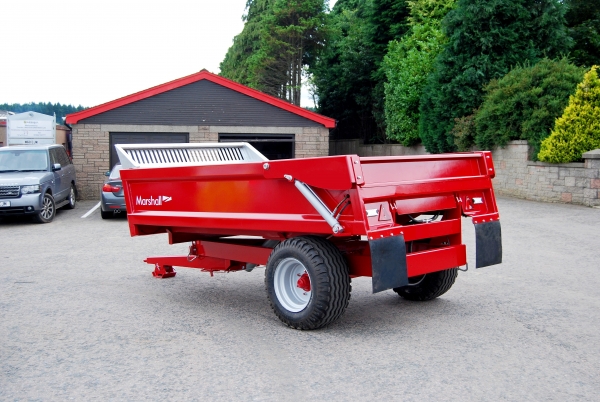

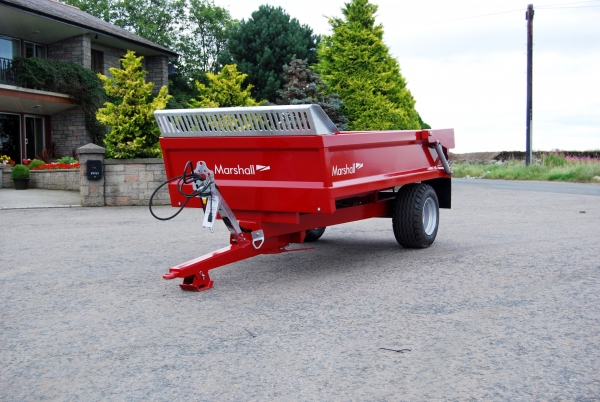

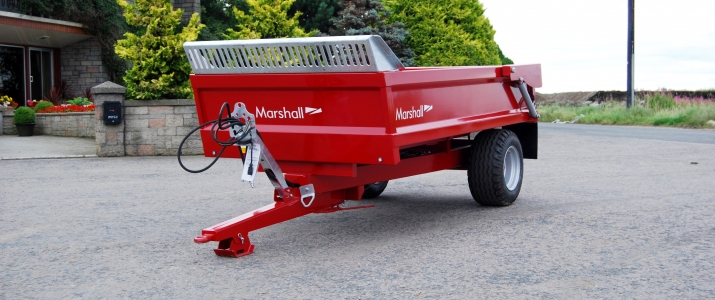

    The Marshall HD/6 hybrid dumper is an extremely versatile and robust trailer, capable of handling the toughest jobs around. It's large carrying capacity makes it an ideal trailer for a variety of jobs, whether it is simple farm maintenance tasks or heavy use on a construction site.

    It has a 6mm floor and 5mm sides, which provide an extremely robust body that can cope with carrying rocks and other heavy loads that could potential damage a lighter trailer. The body of the trailer is formed from heavy-duty pressed steel sheets reinforced with a generous number of bearers that further enhances the strength of the body. The HD/6 comes with a tapered rear-end as standard and elevated tipping point, providing the dual benefits of easy loading and the heaping of loads when discharged.

    The chassis on this model uses our tried and tested design perfected over 60 years of trailer manufacturing, providing excellent strength and stability. The HD/6 also has a high tipping angle of 55 degrees guaranteeing loads are safely and efficiently discharged. On top of this all our dumpers are fitted with lights and hydraulic brakes as standard ensuring that they meet all health and safety regulations.

    This impressive standard specification and build, combined with the HD/6’s compact design means it is an effective dump trailer, that can also handle a huge variety of other tasks.

  • Specification & Prices
    HD/6HD/8HD/12HD/14HD/16
    Price£5,485£8,886£11,120£11,620£13,334
    Body Size11' 6" x 6' 6" x 1' 9"14' x 7' 9" x 1' 9"16' x 7' 9" x 2'16' x 7' 9" x 2' 6"16' x 7' 9" x 3'
    Standard Tyre Size12.5 x 15 - 14 ply12.5 x 15 - 14 ply400 - 60R x 22.5400 - 60R x 22.5400 - 60R x 22.5
    Axle70mm 6 stud70mm 6 stud Tandem80mm 8 stud Tandem80mm 8 stud Tandem120mm 10 stud Tandem
    Brake300 x 60300 x 60350 x 90350 x 90420 x 180 S Cam
    Carrying Capacity6 tons8 tons12 tons14 tons16 tons
    Floor Thickness (Rock)6mm8mm8mm8mm8mm
    Side Thickness5mm5mm6mm6mm6mm
    Lights & Hyd BrakesStandardStandardStandardStandardStandard
    Volume Basic131 cu.ft / 3.7 cu. mtrs190 cu.ft / 5.4 cu.mtrs247 cu.ft / 7 cu.mtrs307 cu.ft / 8.7 cu.mtrs370 cu.ft / 10.5 cu.mtrs
    Basic Trailer Weight1660 kg2475 kg3960 kg4240 kg4680 kg
    Loading Height60"62"71"77"83"
    Tip Angle Degree5560606060
    OPTIONAL EQUIPMENT
    15-55 x 17£340 / (DF-0.5)£680 / (DF-1)N/AN/AN/A
    340 x 65 x 18 Radial£670 / (DF-0.5)£1340 / (DF-1)N/AN/AN/A
    NEW 400-60 x 22.5N/AN/A£788 / (DF-1)£788 / (DF-1)N/A
    550-45 x 22.5 c/w MudguardsN/AN/A£2,005£2,005£2,005
    560-45 x 22.5 c/w MudguardsN/AN/A£2,645£2,645£2,645
    Mudguards / Wings - Bolt OnN/AN/A£365£365£365
    Spring DrawbarN/A£782StandardStandardStandard
    Hydraulic Tail Door£983 / (DF-3)£983 / (DF-3)StandardStandardStandard
    Hyd Door Safety Valve£160 / (DF - 1.5)£160 / (DF-1.5)£160 / (DF-1.5)£160 / (DF-1.5)£160 / (DF-1.5)
    Trailer Cover (640g PVC)£170 / (DF-1)£180 / (DF-1)£240 (DF-1)£240 (DF-1)£240 (DF-1)
    LED Beacon£135 / (DF-0.25)£135 / (DF-0.25)£135 / (DF-0.25)£135 / (DF-0.25)£135 / (DF-0.25)
    LED Tail Lights£150 / (DF-0.5)£150 / (DF-0.5)£180 / (DF-0.5)£180 / (DF-0.5)£180 / (DF-0.5)
    10 Stud Commercial AxleN/AN/A£1,214£1,214N/A
    10 Stud Commercial Axle c/w ABS & Air BrakesN/AN/A£4,620£4,620£3108 / (DF-6)
    Air/Oil Brakes c/w Load Sensing£1,200£1,350 (DF-4)£1,350 (DF-4)£1,350 (DF-4)£1,350 (DF-4)
    Rear Tow Hitch c/w Lights & BrakesN/A£425£325 / (DF-2)£325 / (DF-2)£325 / (DF-2)
  • Owners Info
    • Tyre Pressure Chart

      Download
    • Trailers Instruction Manual

      Download
    • Marshall Pricelist and Brochure 2017

      Download
    • Order Hybrid Dumper Trailers spares online

      Read more
    • Additional Equipment for this machine

      Read more
  • FAQ's
    • What are the current regulations on agricultural trailer brakes?

      Read more

      What are the current regulations on agricultural trailer brakes?

      The law currently states that trailers travelling below 25mph have to have a braking efficiency of at least 25% (UK Road Vehicle Construction & Use Regulations). Above this speed it is unclear exactly what requirements an agricultural trailer has to meet, whether it is commercial braking requirements or still simply a 25% braking efficiency.

      There is currently EU legislation under discussion which would implement a 50% braking efficiency for agricultural trailers, but this has been already been debated for a number of years without it becoming law. It seems unlikely that it will be implemented within the next few years, if ever, since this would impose higher braking standards than required on commercial vehicles.

      Marshall products are fitted with hydraulic brakes as standard and on average provide a braking efficiency of 35%, which exceeds the current legal requirements. This impressive baseline performance is achieved by fitting high quality axles supplied by the world’s leading axle manufacturer, combined with enlarged 25mm brake cylinders and durable 2 wire hoses.

      Take time to examine the specifications of our models and take note of the brake sizes and axles sizes. In particular notice we fit commercial 420 x 180 10 stud axles as standard on our QM/14, QM/16, QM/1600 and QM1800 models; not 10 stud industrial axles, which provide significantly reduced performance. The way to tell the difference between these axles is a commercial axle uses an S-cam brake rode while an industrial axle uses a flat-cam brake rod.

      If a customer requires enhanced braking performance we also offer air brakes with loading sensing, full ABS systems and a number of axle upgrades. This guarantees a Marshall trailer can meet current legal requirements now and any EU legislation that could potentially be introduced in the future.

  • Additional Equipment Extra
    • Springs for Single Axle

      Springs for Single Axle

      Part No.
      076/01-0003

      £390.00

      Improves trailer ride off-road and on the road.

    • 340 x 65 x 18 Wheels

      340 x 65 x 18 Wheels

      Part No.
      083/01-340-65/06

      Dealer Fit - 0.5hrs

      £670.00

      These tyres also known as "minature super singles" and are excellent for extensive road use. Please note all prices are in place of standard tyres.

    • 15-55 x 17 Wheels

      15-55 x 17 Wheels

      Part No.
      083/01-1555-17/06

      Dealer Fit - 0.5hrs

      £340.00

      These tyres significantly reduce ground compaction, and are ideal in wet conditions or for use in the groundcare industry. Please note all prices are in place of standard tyres.

    • Air/Oil Brakes c/w Load Sensing (Non ABS)

      Air/Oil Brakes c/w Load Sensing (Non ABS)

      Part No.
      050/11-4000

      £1,200.00

      Ideal if the machine is frequently used on the road, provides improved braking for higher speeds. Automatic load sensing available on springs & manual load sensing available on rockers.

    • Dumper Hydraulic Door

      Dumper Hydraulic Door

      Part No.
      065/01-7106

      Dealer Fit - 3hrs

      £983.00

      Increases capacity and allows a controlled discharge of the load when tipping.

    • Hydraulic Door Safety Valve

      Hydraulic Door Safety Valve

      Part No.
      082/02-3000

      Dealer Fit - 1.5hrs

      £160.00

      Ensures the hydraulic door of the trailer cannot be opened unless the trailer body is slightly tipped.

    • Hitch Lock

      Hitch Lock

      Part No.
      060/01-1090

      Dealer Fit - 0.25hrs

      £98.00

      Allows the machine to be secured against theft. Padlock is not included.

    • Trailer Cover

      Trailer Cover

      Part No.
      057/02-0601

      Dealer Fit - 0.25hrs

      £170.00

      A simple 640g PVC cover to protect grain or other valuable loads.

    • Number Plate Bracket & Light

      Number Plate Bracket & Light

      Part No.
      064/03-6390

      Dealer Fit - 1hrs

      £75.00

      Allows your number plate to be easily changed.

    • LED Beacon

      LED Beacon

      Part No.
      064/02-8020

      Dealer Fit - 0.25hrs

      £135.00

      Ideal if the machine is frequently used on the road.

    • LED Lights

      LED Lights

      Part No.
      064/02-9010

      Dealer Fit - 0.5hrs

      £150.00

      Improved visibility of the machine and reduces maintenance of lights.

    • LED Worklights

      LED Worklights

      Part No.
      640/01-0420

      Dealer Fit - 2hrs

      £260.00

      These lights come in a pair and provide excellent illumination for working at night.

    • Bespoke Colour Finish - Single Colour

      Bespoke Colour Finish - Single Colour

      Part No.
      068/08-9990

      £200.00

      Your Marshall product can receive a bespoke paint finish. Please note paint is not guaranteed to be an exact colour match, although every effort will be made to match the colour as closely as possible.

    • Bespoke Colour Finish - Dual Colour

      Bespoke Colour Finish - Dual Colour

      Part No.
      068/08-9992

      £400.00

      Your Marshall product can receive a bespoke paint finish. Please note paint is not guaranteed to be an exact colour match, although every effort will be made to match the colour as closely as possible.

    • Rear Name Plate

      Rear Name Plate

      Part No.
      067/02-1100

      Dealer Fit - 1hrs

      £135.00

      Your Marshall product can have your name or farm name on the rear door.
